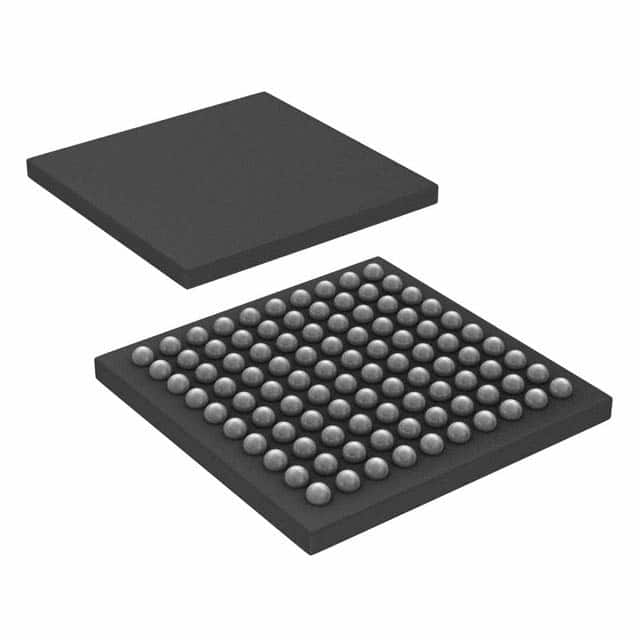

ATSAMS70N20B-CFNT
IC MCU 32BIT 1MB FLASH 100VFBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology ATSAMS70N20B-CFNT is a 32-bit microcontroller featuring an ARM Cortex-M7 core operating at 300MHz. This single-core processor offers 1MB of FLASH program memory and 384KB of SRAM. Connectivity options include I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, and USB. On-chip peripherals include Brown-out Detect/Reset, DMA, I2S, POR, PWM, and WDT. Data conversion capabilities are provided by 10x12-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters. The device is supplied in a 100-VFBGA (7x7) package for surface mounting, operating within a temperature range of -40°C to 105°C. This component is suitable for applications in industrial automation, advanced motor control, and high-performance embedded systems.
Additional Information
Series: SAM S70RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 300MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 10x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 100-VFBGA (7x7) |
| Number of I/O | 75 |
| Programmable | Not Verified |
