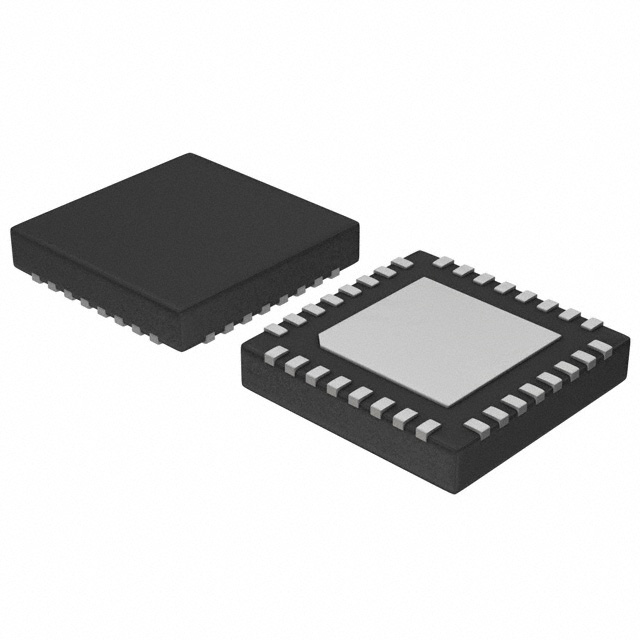

ATSAML11E16A-MUTKPH

IC MCU 32BIT 64KB FLASH 32VQFN

Manufacturer: Microchip Technology

Categories: Microcontrollers

Quality Control: Learn More

Microchip Technology's SAM L11 series microcontroller, part number ATSAML11E16A-MUTKPH, features an ARM® Cortex®-M23 32-bit single-core processor operating at 32MHz. This device offers 64KB of FLASH program memory and 16KB of SRAM, supported by 2KB of EEPROM. Connectivity options include I2C, LINbus, SPI, and UART/USART interfaces. The microcontroller includes integrated peripherals such as A/D converters (10x12b), D/A converter (1x10b), DMA, POR, PWM, and WDT, along with brown-out detect/reset functionality. Housed in a 32-VQFN (5x5) exposed pad package, it is suitable for surface mounting. The operating temperature range is -40°C to 85°C. This component finds application in various industries including consumer electronics, industrial automation, and medical devices.

Additional Information

Series: SAM L11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case32-VFQFN Exposed Pad
Mounting TypeSurface Mount
Speed32MHz
Program Memory Size64KB (64K x 8)
RAM Size16K x 8
Operating Temperature-40°C ~ 85°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size2K x 8
Core ProcessorARM® Cortex®-M23
Data ConvertersA/D 10x12b; D/A 1x10b
Core Size32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)1.62V ~ 3.63V
ConnectivityI2C, LINbus, SPI, UART/USART
PeripheralsBrown-out Detect/Reset, DMA, POR, PWM, WDT
Supplier Device Package32-VQFN (5x5)
Number of I/O25
ProgrammableNot Verified
