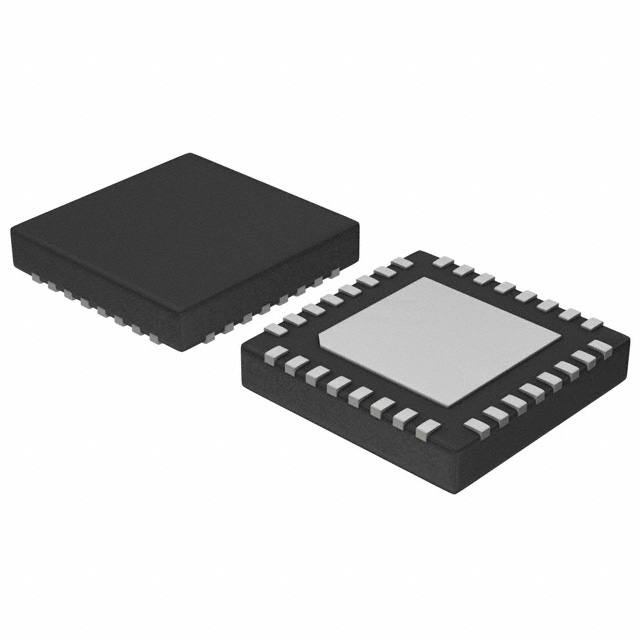

ATSAML11E16A-MUKPH

IC MCU 32BIT 64KB FLASH 32VQFN

Manufacturer: Microchip Technology

Categories: Microcontrollers

Quality Control: Learn More

The Microchip Technology ATSAML11E16A-MUKPH is a 32-bit ARM Cortex-M23 microcontroller featuring a 32MHz single-core processor. This SAM L11 series device offers 64KB of FLASH program memory and 16KB of RAM, with an additional 2KB of EEPROM. Connectivity options include I2C, LINbus, SPI, and UART/USART. It integrates a 10x12-bit Analog-to-Digital converter and a 1x10-bit Digital-to-Analog converter. Peripherals include Brown-out Detect/Reset, DMA, POR, PWM, and WDT. The component operates from a 1.62V to 3.63V supply and has 25 I/O pins. Designed for surface mounting, it comes in a 32-VQFN (5x5) package with an exposed pad and operates within a temperature range of -40°C to 85°C. This microcontroller is suitable for applications in consumer electronics, industrial automation, and the Internet of Things.

Additional Information

Series: SAM L11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:
Technical Details:
PackagingTray
Package / Case32-VFQFN Exposed Pad
Mounting TypeSurface Mount
Speed32MHz
Program Memory Size64KB (64K x 8)
RAM Size16K x 8
Operating Temperature-40°C ~ 85°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size2K x 8
Core ProcessorARM® Cortex®-M23
Data ConvertersA/D 10x12b; D/A 1x10b
Core Size32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)1.62V ~ 3.63V
ConnectivityI2C, LINbus, SPI, UART/USART
PeripheralsBrown-out Detect/Reset, DMA, POR, PWM, WDT
Supplier Device Package32-VQFN (5x5)
Number of I/O25
ProgrammableNot Verified
