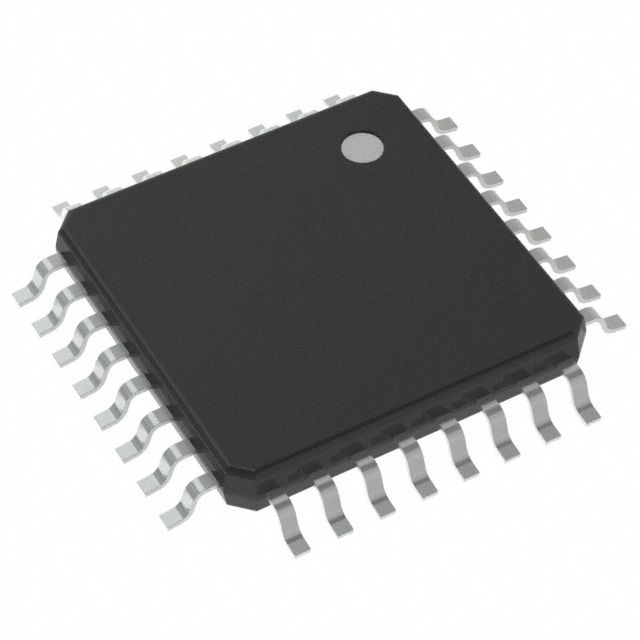

ATSAML11E16A-AFKPH
IC MCU 32BIT 64KB FLASH 32TQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology SAM L11 series microcontroller, part number ATSAML11E16A-AFKPH. This 32-bit ARM Cortex-M23 microcontroller features a single-core processor operating at 32MHz. It offers 64KB of FLASH program memory and 16KB of RAM. Connectivity options include I2C, LINbus, SPI, and UART/USART. The device includes a 10-channel 12-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. Peripherals include Brown-out Detect/Reset, DMA, POR, PWM, and WDT. The ATSAML11E16A-AFKPH is supplied in a 32-TQFP (7x7) package for surface mounting. Operating voltage is 1.62V to 3.63V with an operating temperature range of -40°C to 125°C. This component is suitable for applications in the industrial, automotive, and consumer electronics sectors.
Additional Information
Series: SAM L11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M23 |
| Data Converters | A/D 10x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 32-TQFP (7x7) |
| Number of I/O | 25 |
| Programmable | Not Verified |
