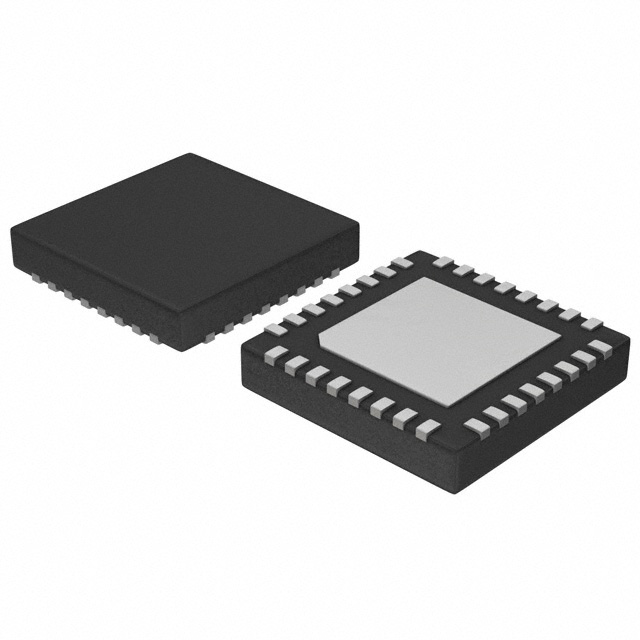

ATSAML11E15A-MFKPH
IC MCU 32BIT 32KB FLASH 32VQFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology ATSAML11E15A-MFKPH is a 32-bit ARM Cortex-M23 microcontroller featuring a 32MHz single-core processor. This device offers 32KB of FLASH program memory and 8KB of SRAM. Connectivity is supported via I2C, LINbus, SPI, and UART/USART interfaces. On-chip peripherals include DMA, multiple brown-out detection/reset capabilities, PWM generation, and a watchdog timer. The ATSAML11E15A-MFKPH includes a 10-channel, 12-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. The component operates within a voltage range of 1.62V to 3.63V and is rated for an operating temperature of -40°C to 125°C. Supplied in a 32-VQFN (5x5) package, it is suitable for surface mounting. This microcontroller finds application in various industries including industrial automation, IoT devices, and consumer electronics.
Additional Information
Series: SAM L11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M23 |
| Data Converters | A/D 10x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 32-VQFN (5x5) |
| Number of I/O | 25 |
| Programmable | Not Verified |
