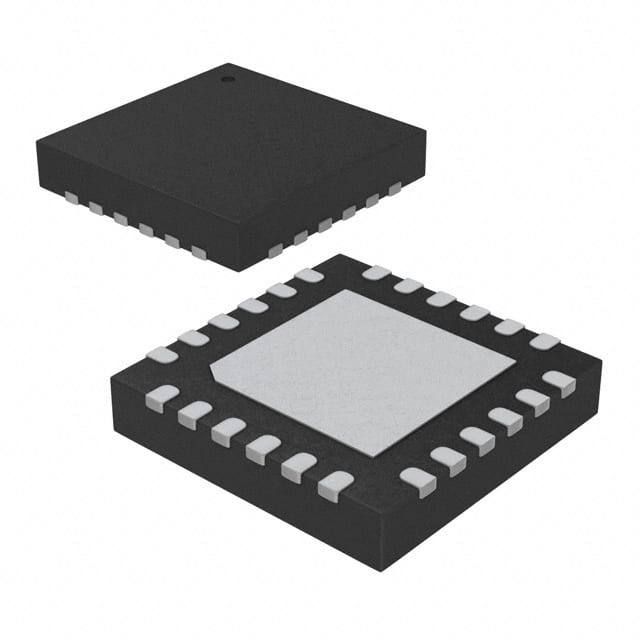

ATSAML11D16A-MUKPH
IC MCU 32BIT 64KB FLASH 24VQFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's ATSAML11D16A-MUKPH is a 32-bit ARM Cortex-M23 microcontroller featuring a single-core architecture operating at 32MHz. This SAM L11 series device offers 64KB of FLASH program memory and 16KB of SRAM, complemented by 2KB of EEPROM. Connectivity options include I2C, LINbus, SPI, and UART/USART interfaces. Integrated peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT enhance its functionality. The microcontroller supports analog conversion with a 5x12-bit Analog-to-Digital converter and a 1x10-bit Digital-to-Analog converter. It is supplied in a 24-VQFN (4x4) exposed pad package suitable for surface mounting and operates within a voltage range of 1.62V to 3.63V across an industrial temperature range of -40°C to 85°C. This component finds application in industrial, IoT, and consumer electronics sectors.
Additional Information
Series: SAM L11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M23 |
| Data Converters | A/D 5x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 24-VQFN (4x4) |
| Number of I/O | 17 |
| Programmable | Not Verified |
