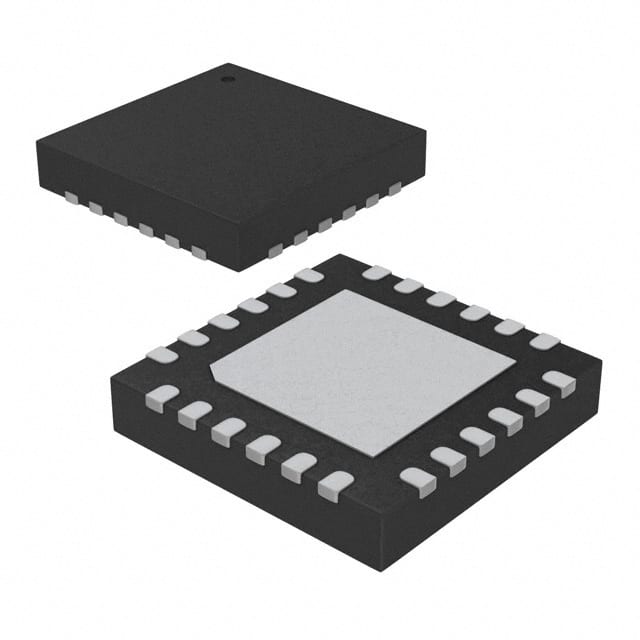

productimage

ATSAML11D16A-MFKPH

IC MCU 32BIT 64KB FLASH 24VQFN

Manufacturer: Microchip Technology

Categories: Microcontrollers

Quality Control: Learn More

Microchip Technology ATSAML11D16A-MFKPH is a 32-bit ARM Cortex-M23 microcontroller featuring a single-core 32MHz processor. This device offers 64KB of FLASH program memory and 16KB of SRAM, along with 2KB of EEPROM. Connectivity options include I2C, LINbus, SPI, and UART/USART interfaces. The ATSAML11D16A-MFKPH includes a 5x12-bit Analog-to-Digital converter and a 1x10-bit Digital-to-Analog converter. Integrated peripherals consist of Brown-out Detect/Reset, DMA, POR, PWM, and WDT. The microcontroller operates within a voltage range of 1.62V to 3.63V and supports an internal oscillator. It is packaged in a 24-VQFN (4x4) with an exposed pad, suitable for surface mounting. This component is utilized in applications such as industrial automation, consumer electronics, and Internet of Things (IoT) devices.

Additional Information

Series: SAM L11RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:
Technical Details:
PackagingTray
Package / Case24-VFQFN Exposed Pad
Mounting TypeSurface Mount
Speed32MHz
Program Memory Size64KB (64K x 8)
RAM Size16K x 8
Operating Temperature-40°C ~ 125°C (TA)
Oscillator TypeInternal
Program Memory TypeFLASH
EEPROM Size2K x 8
Core ProcessorARM® Cortex®-M23
Data ConvertersA/D 5x12b; D/A 1x10b
Core Size32-Bit Single-Core
Voltage - Supply (Vcc/Vdd)1.62V ~ 3.63V
ConnectivityI2C, LINbus, SPI, UART/USART
PeripheralsBrown-out Detect/Reset, DMA, POR, PWM, WDT
Supplier Device Package24-VQFN (4x4)
Number of I/O17
ProgrammableNot Verified
