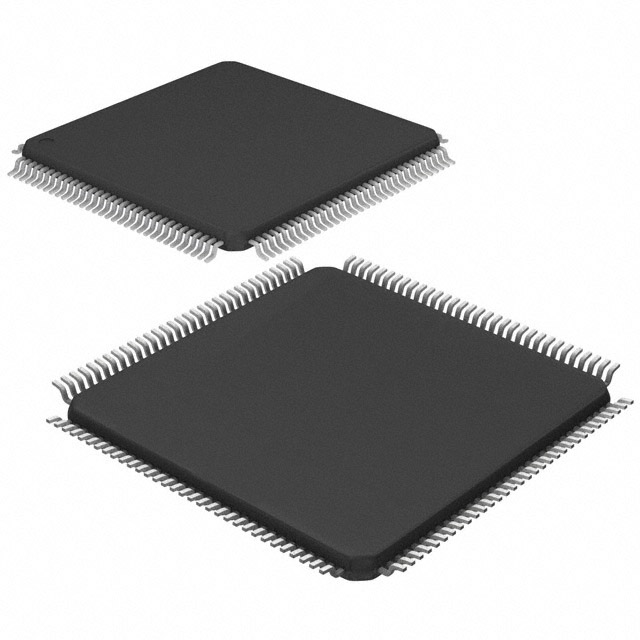

ATSAME54P19A-AU-EFP
IC MCU 32BIT 512KB FLASH 128TQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4F SAM E54 Microcontroller IC 32-Bit Single-Core 120MHz 512KB (512K x 8) FLASH 128-TQFP (14x14)
Additional Information
Series: SAM E54RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-TQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 32x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 128-TQFP (14x14) |
| Number of I/O | 99 |
| Programmable | Not Verified |
