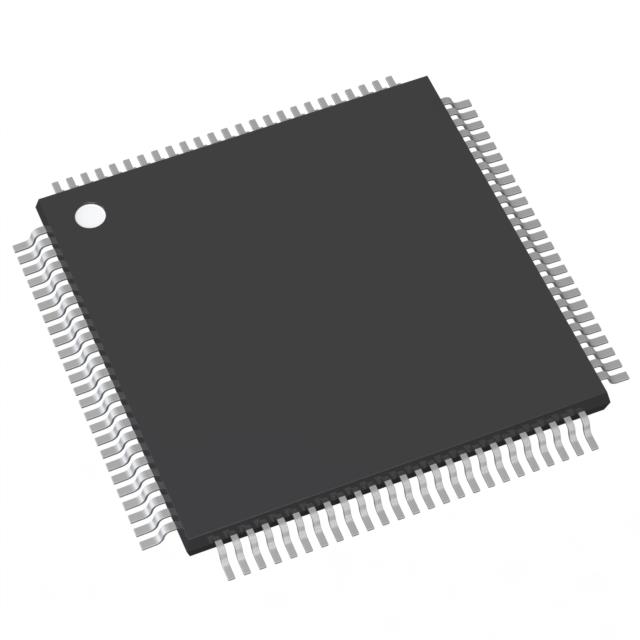

ATSAME54N20A-AFT-SL3
IC MCU 32BIT 1MB FLASH 100TQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's ATSAME54N20A-AFT-SL3 is a 32-bit ARM Cortex-M4F microcontroller operating at 100MHz. This device features 1MB of FLASH program memory and 256KB of RAM. Connectivity options include CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces, along with QSPI and MMC/SD card support. It is equipped with a 28-channel 12-bit Analog-to-Digital converter and two 12-bit Digital-to-Analog converters. Peripherals include DMA, I2S, PWM, and watchdog timers. The ATSAME54N20A-AFT-SL3 is housed in a 100-TQFP package and operates within a temperature range of -40°C to 125°C. This component is suitable for applications in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: SAM E54RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-TQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 28x12b; D/A 2x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 100-TQFP (14x14) |
| Number of I/O | 81 |
Request a Quote
