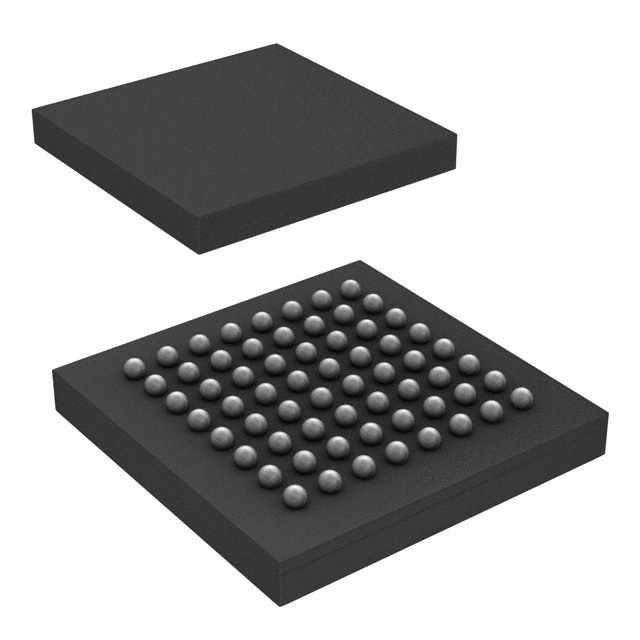

ATSAMD20J17A-CN
IC MCU 32BIT 128KB FLASH 64UFBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology ATSAMD20J17A-CN is a 32-bit ARM Cortex-M0+ microcontroller. This SAM D20J series device features a single-core architecture operating at up to 48MHz. The component offers 128KB of FLASH program memory and 16KB of RAM. Connectivity interfaces include I2C, SPI, and UART/USART. On-chip peripherals consist of a brown-out detect/reset circuit, power-on reset (POR), and watchdog timer (WDT). It integrates a 20-channel, 12-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. The ATSAMD20J17A-CN is supplied in a 64-UFBGA (5x5) surface mount package and operates within a voltage range of 1.62V to 3.6V, with an operating temperature of -40°C to 105°C. This microcontroller is suitable for applications in industrial automation, consumer electronics, and IoT devices.
Additional Information
Series: SAM D20JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-UFBGA |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 20x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 64-UFBGA (5x5) |
| Number of I/O | 52 |
| Programmable | Not Verified |
