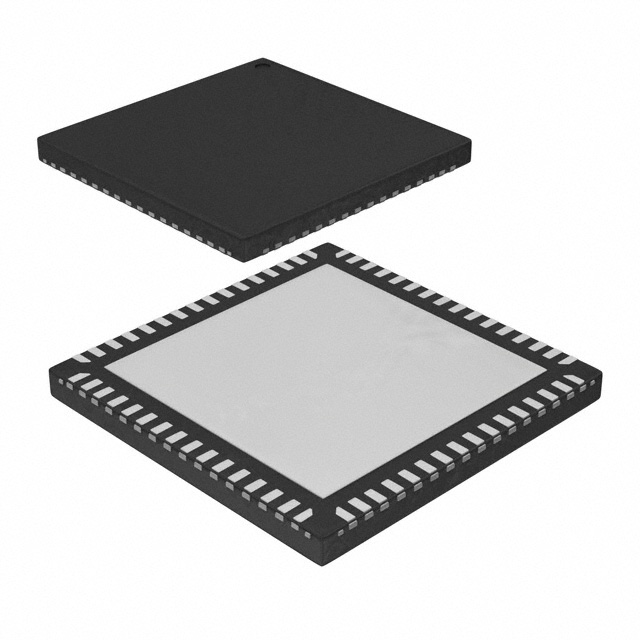

ATSAMD20J16A-MNT
IC MCU 32BIT 64KB FLASH 64QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's ATSAMD20J16A-MNT is a 32-bit ARM Cortex-M0+ microcontroller featuring a single-core architecture operating at up to 48MHz. This SAM D20J series component offers 64KB of FLASH program memory with 8KB of RAM. It supports I2C, SPI, and UART/USART communication interfaces and includes 20 channels of 12-bit Analog-to-Digital conversion and one 10-bit Digital-to-Analog converter. Peripheral features include Brown-out Detect/Reset, Power-On Reset, and Watchdog Timer. The device is housed in a 64-QFN (9x9) surface mount package, supplied on tape and reel. This microcontroller is suitable for applications in industrial automation, consumer electronics, and the Internet of Things. It operates within a voltage range of 1.62V to 3.6V and a temperature range of -40°C to 105°C (TA).
Additional Information
Series: SAM D20JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 20x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Number of I/O | 52 |
| Programmable | Not Verified |
