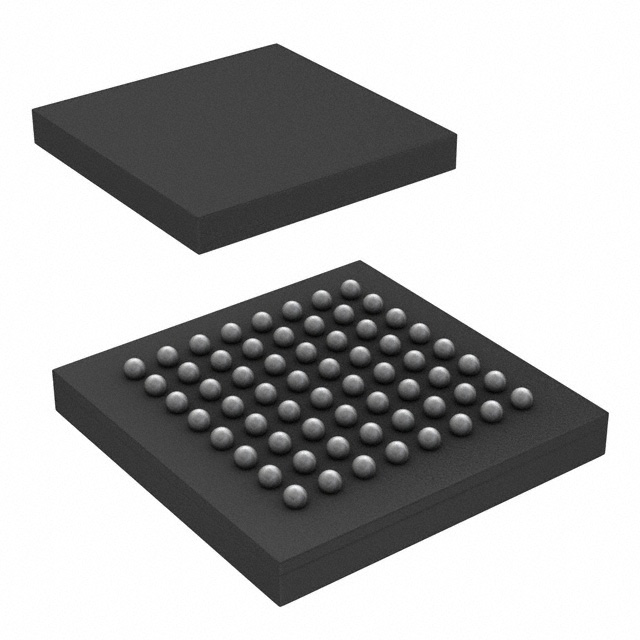

ATSAMD20J14A-CN
IC MCU 32BIT 16KB FLASH 64UFBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's ATSAMD20J14A-CN is a 32-bit ARM Cortex-M0+ microcontroller featuring a single-core architecture operating at up to 48MHz. This device offers 16KB of FLASH program memory and 2KB of RAM, along with integrated peripherals including I2C, SPI, and UART/USART connectivity. Its data conversion capabilities include a 20-channel 12-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. The 64-UFBGA (5x5) package is suitable for surface mount applications. Additional features include brown-out detection/reset, power-on reset (POR), and a watchdog timer (WDT). The operating voltage range is 1.62V to 3.6V, with an operating temperature range of -40°C to 105°C. This microcontroller finds application in various industrial automation, consumer electronics, and IoT solutions.
Additional Information
Series: SAM D20JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-UFBGA |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 20x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 64-UFBGA (5x5) |
| Number of I/O | 52 |
| Programmable | Not Verified |
