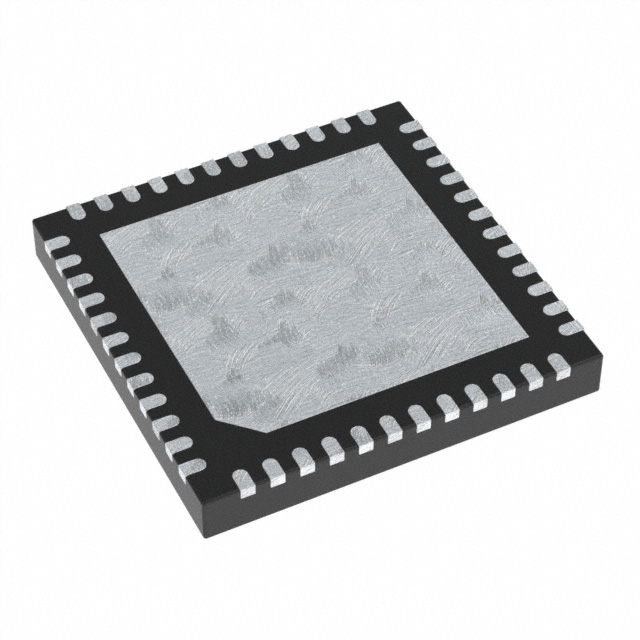

ATSAMD20G18A-MNT
IC MCU 32BIT 256KB FLASH 48QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology ATSAMD20G18A-MNT is a 32-bit ARM Cortex-M0+ microcontroller featuring a single-core architecture operating at up to 48MHz. This device offers 256KB of FLASH program memory and 32KB of SRAM. Connectivity options include I2C, SPI, and UART/USART interfaces. For analog tasks, it provides 14 channels of 12-bit Analog-to-Digital conversion and one 10-bit Digital-to-Analog converter. Peripherals include Brown-out Detect/Reset, Power-On Reset (POR), and a Watchdog Timer (WDT). The component is housed in a 48-QFN (7x7) surface mount package and operates within a temperature range of -40°C to 105°C. Applications for this microcontroller are found in industrial automation, consumer electronics, and IoT devices.
Additional Information
Series: SAM D20GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 14x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Number of I/O | 38 |
| Programmable | Verified |
