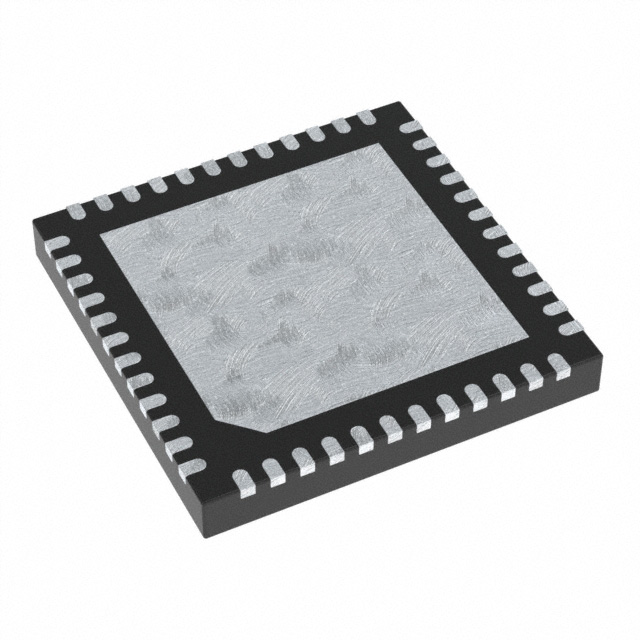

ATSAMD20G17A-MN
IC MCU 32BIT 128KB FLASH 48QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology ARM® Cortex®-M0+ SAM D20G series microcontroller, part number ATSAMD20G17A-MN. This 32-bit single-core device operates at 48MHz and features 128KB of FLASH program memory with 16KB of RAM. The ATSAMD20G17A-MN offers extensive connectivity options including I2C, SPI, and UART/USART. It integrates 14x12-bit Analog-to-Digital converters and a 1x10-bit Digital-to-Analog converter. Peripherals include Brown-out Detect/Reset, POR, and WDT. The device is supplied in a 48-QFN (7x7) package for surface mounting and operates within a temperature range of -40°C to 105°C. This microcontroller is suitable for applications in the industrial automation, consumer electronics, and automotive sectors.
Additional Information
Series: SAM D20GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 14x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Number of I/O | 38 |
| Programmable | Verified |
