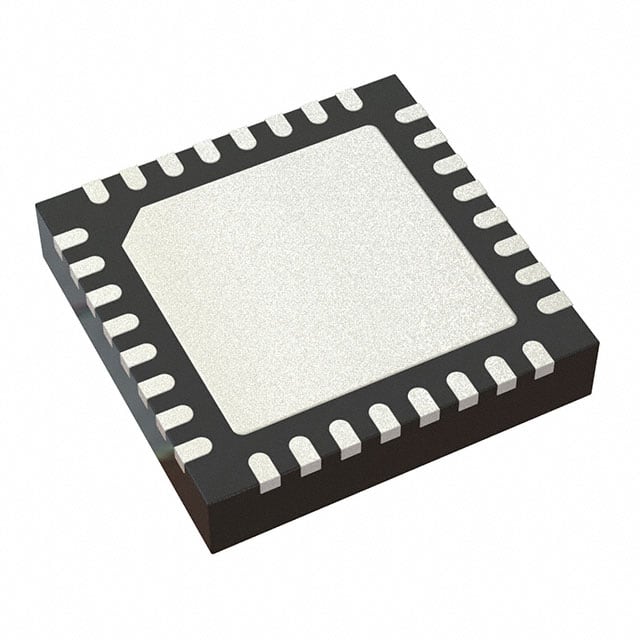

ATSAMD20E15A-MNT
IC MCU 32BIT 32KB FLASH 32QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology SAM D20E series microcontroller, part number ATSAMD20E15A-MNT. This 32-bit ARM Cortex-M0+ microcontroller features a 48MHz single-core processor with 32KB of FLASH program memory and 4KB of RAM. On-chip peripherals include I2C, SPI, and UART/USART connectivity, along with a 10-bit Analog-to-Digital converter with 10 channels and a 10-bit Digital-to-Analog converter. Additional features include Brown-out Detect/Reset, Power-On Reset (POR), and Watchdog Timer (WDT). The device operates from a 1.62V to 3.6V supply and is housed in a 32-VQFN (5x5) surface-mount package. This component is suitable for applications in industrial automation, consumer electronics, and medical devices. It is supplied in Tape & Reel packaging.
Additional Information
Series: SAM D20ERoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 10x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Supplier Device Package | 32-VQFN (5x5) |
| Number of I/O | 26 |
| Programmable | Not Verified |
