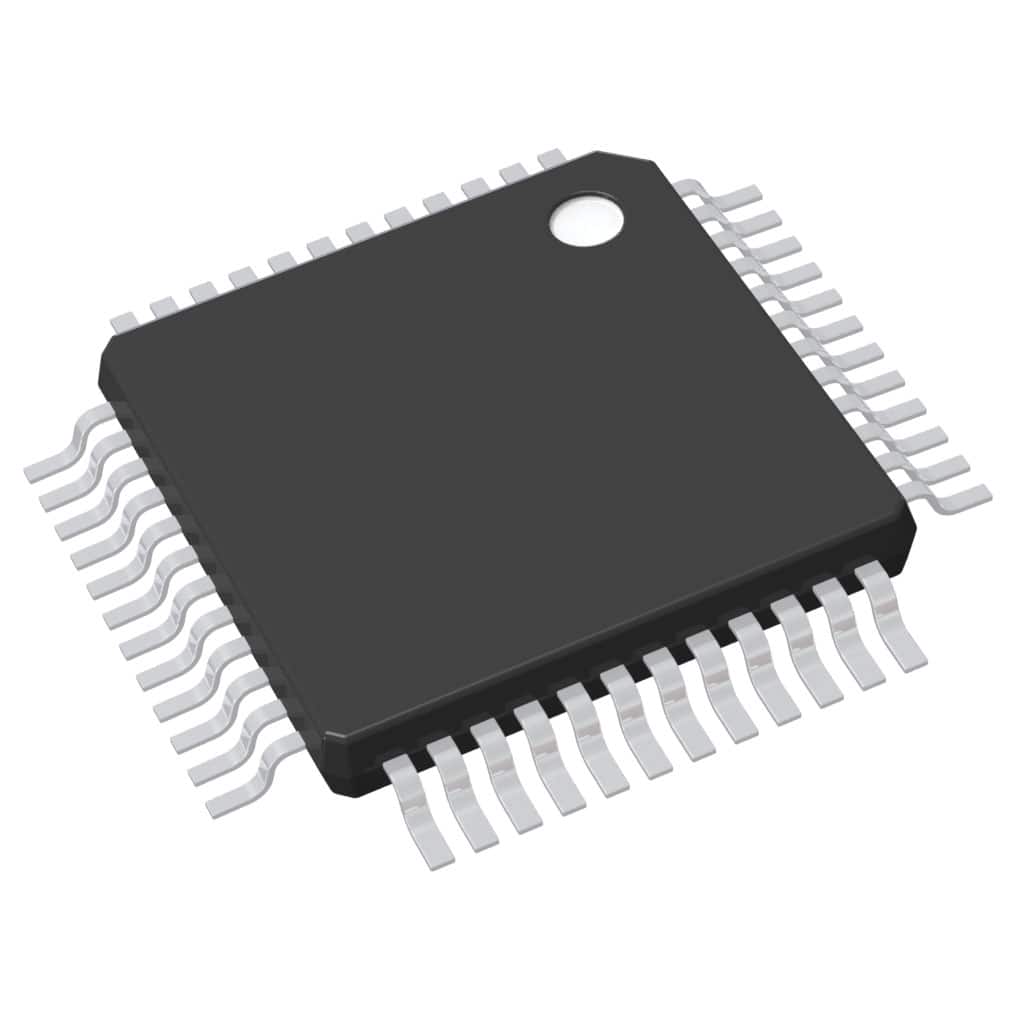

ATSAMC21G16A-AUT
IC MCU 32BIT 64KB FLASH 48TQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M0+ SAM C21, Functional Safety (FuSa) Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH 48-TQFP (7x7)
Additional Information
Series: SAM C21, Functional Safety (FuSa)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 14x12b, 2x16b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT |
| Supplier Device Package | 48-TQFP (7x7) |
| Number of I/O | 38 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
ATSAMC21N17A-ANT
IC MCU 32BIT 128KB FLASH 100TQFP
ATSAMC21N18A-AN
IC MCU 32BIT 256KB FLASH 100TQFP

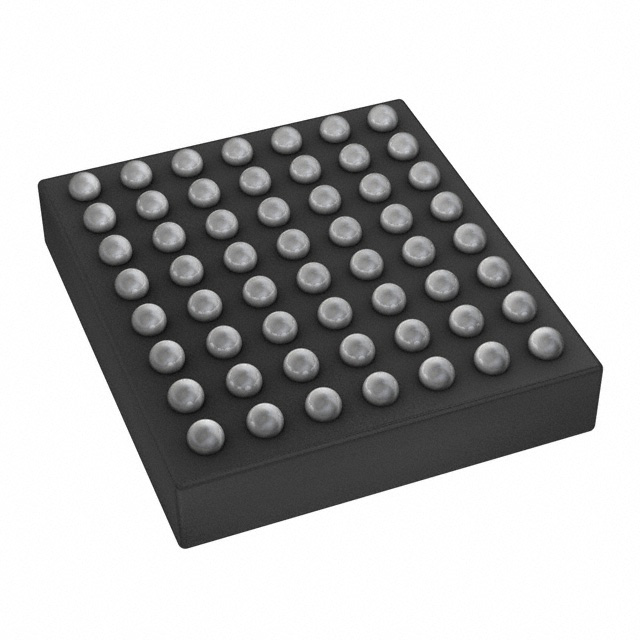

ATSAMC21J17A-UUT
