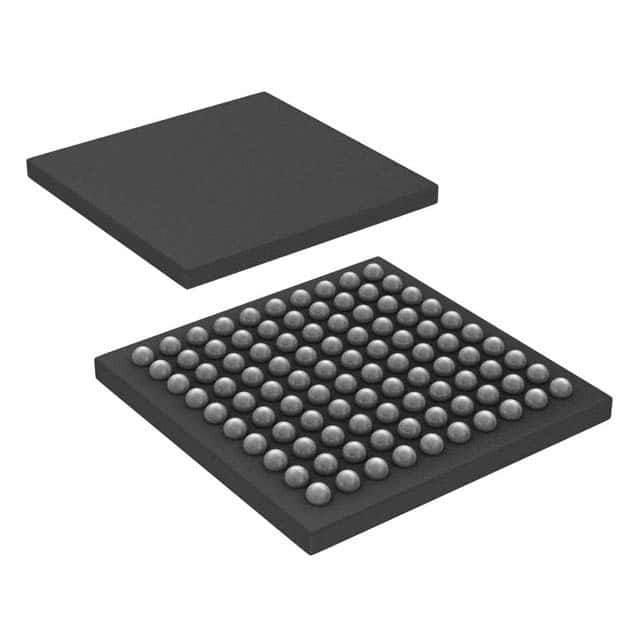

ATSAM4LS8CA-CFU
IC MCU 32BIT 512KB FLSH 100VFBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology ATSAM4LS8CA-CFU is a 32-bit ARM Cortex-M4 microcontroller featuring a single-core architecture operating at 48MHz. This SAM4L series device offers 512KB of FLASH program memory with 64KB of RAM, suitable for applications requiring efficient code execution and data storage. On-chip peripherals include a 15-channel 12-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. Connectivity options are extensive, supporting I2C, IrDA, LINbus, SPI, UART/USART, and USB interfaces. The microcontroller also incorporates essential system functions such as Brown-out Detect/Reset, DMA, I2S, POR, PWM, and WDT. The ATSAM4LS8CA-CFU is supplied in a 100-VFBGA (7x7) surface mount package and operates within a voltage range of 1.68V to 3.6V, with an operating temperature of -40°C to 85°C. This component is commonly utilized in industrial, automotive, and consumer electronics applications.
Additional Information
Series: SAM4LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-VFBGA |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 15x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.68V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 100-VFBGA (7x7) |
| Number of I/O | 80 |
| Programmable | Not Verified |
