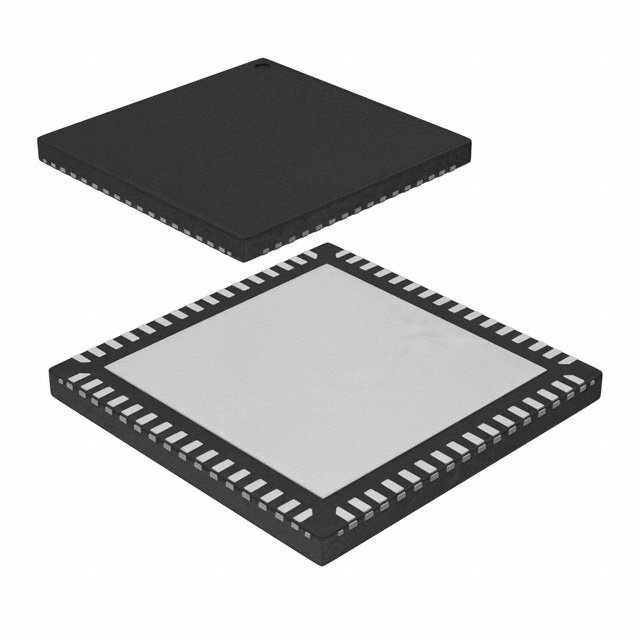

ATSAM4LC8BA-MU
IC MCU 32BIT 512KB FLASH 64QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology SAM4L series ARM Cortex-M4 microcontroller, part number ATSAM4LC8BA-MU. This 32-bit single-core MCU operates at 48MHz and features 512KB of FLASH program memory and 64KB of SRAM. Connectivity options include I2C, IrDA, LINbus, SPI, UART/USART, and USB. The device offers analog-to-digital conversion with 7x12-bit channels and a 1x10-bit digital-to-analog converter. Peripherals include DMA, I2S, LCD, POR, PWM, and WDT, along with brown-out detect/reset capabilities. The ATSAM4LC8BA-MU is supplied in a 64-QFN (9x9) package suitable for surface mounting and operates within a voltage range of 1.68V to 3.6V. This component is utilized in industrial automation, consumer electronics, and medical device applications.
Additional Information
Series: SAM4LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 7x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.68V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Number of I/O | 43 |
| Programmable | Not Verified |
