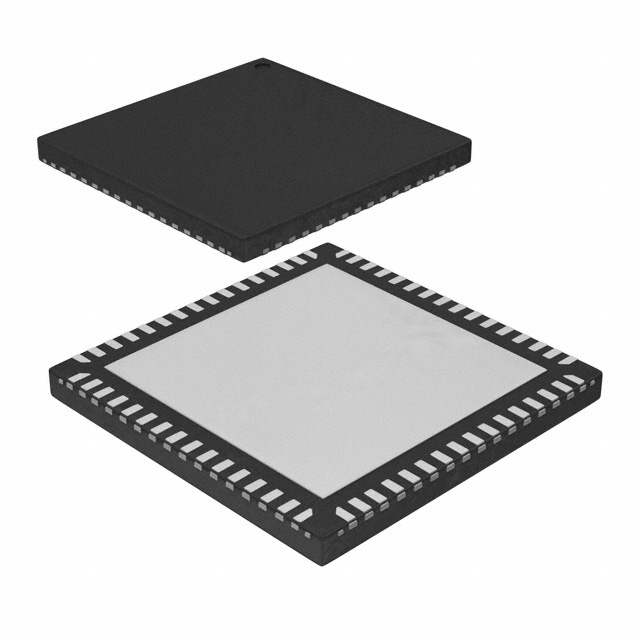

ATSAM3N1BB-MUR
IC MCU 32BIT 64KB FLASH 64QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's SAM3N series microcontroller, part number ATSAM3N1BB-MUR, features an ARM Cortex-M3 32-bit single-core processor operating at 48MHz. This component includes 64KB of FLASH program memory and 8KB of RAM. Connectivity options include I2C, IrDA, SPI, and UART/USART. Peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT are integrated. The device supports 10-bit Analog-to-Digital conversion with up to 10 channels and a 10-bit Digital-to-Analog converter with one channel. The ATSAM3N1BB-MUR is housed in a 64-QFN (9x9) package suitable for surface mounting and operates within a voltage range of 1.62V to 3.6V. This microcontroller is well-suited for applications in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: SAM3NRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 10x10b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Number of I/O | 47 |
| Programmable | Not Verified |
