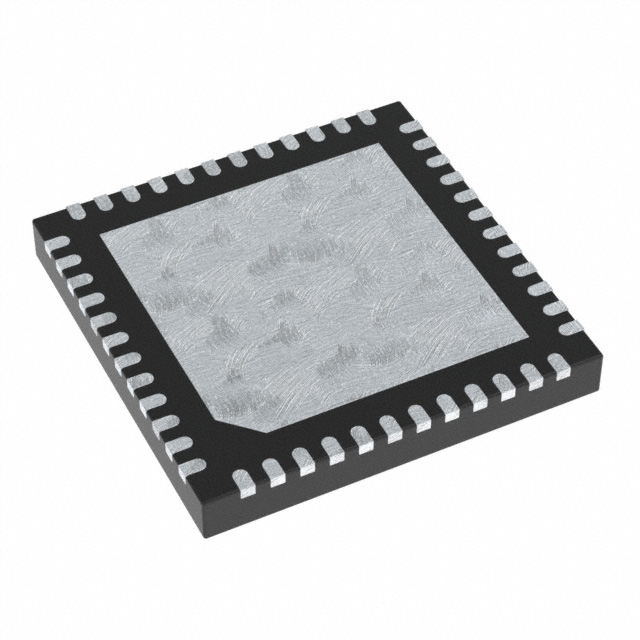

ATSAM3N1AB-MUR
IC MCU 32BIT 64KB FLASH 48QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology ATSAM3N1AB-MUR, a SAM3N series 32-bit microcontroller, features an ARM Cortex-M3 core operating at 48MHz. This single-core processor is equipped with 64KB of FLASH program memory and 8KB of SRAM. Connectivity options include I2C, IrDA, SPI, and UART/USART. On-chip peripherals consist of a Brown-out Detect/Reset, DMA, POR, PWM, and WDT. Data conversion is supported by an 8x10-bit Analog-to-Digital converter. The unit is housed in a 48-QFN (7x7) surface-mount package and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: SAM3NRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Number of I/O | 34 |
| Programmable | Not Verified |
