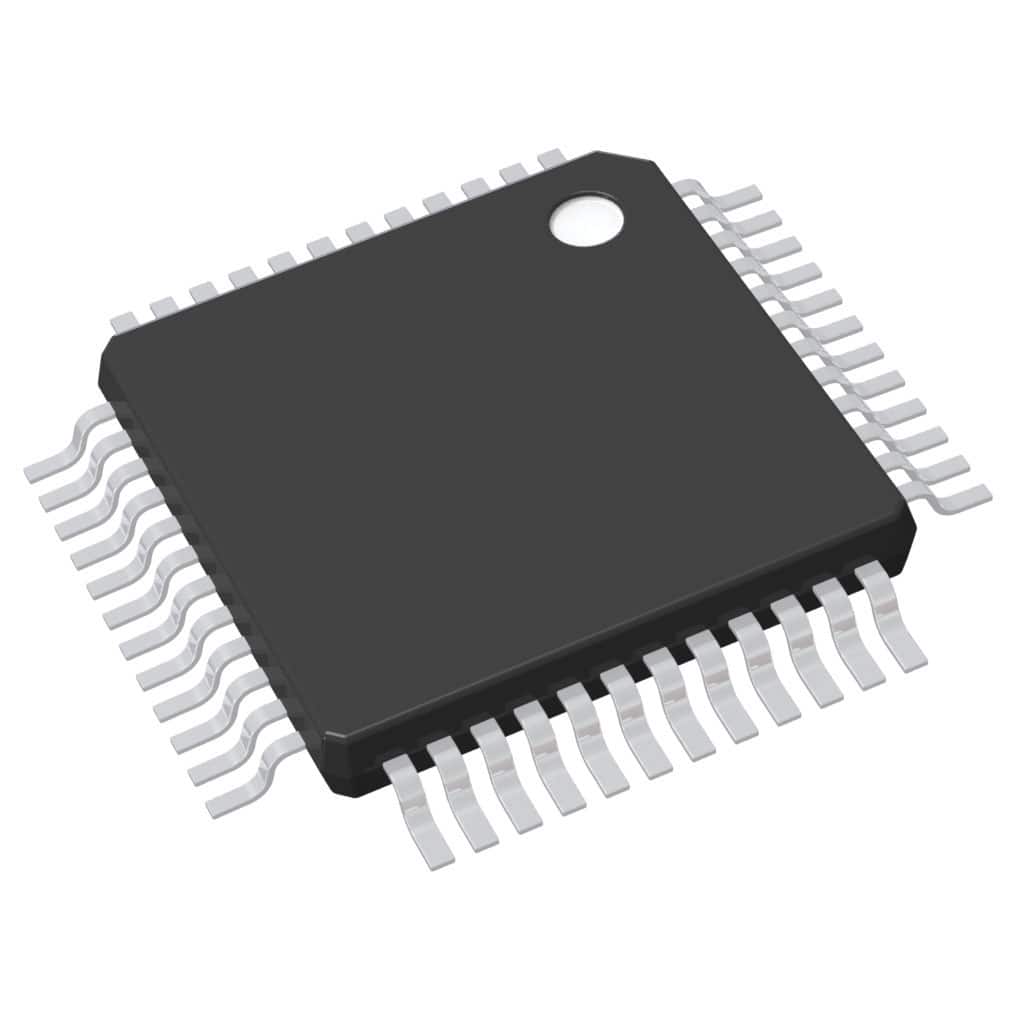

ATSAM3N0AA-AU
IC MCU 32BIT 32KB FLASH 48LQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology SAM3N series microcontroller, part number ATSAM3N0AA-AU. This 32-bit ARM Cortex-M3 microcontroller features a single-core processor operating at 48MHz. It offers 32KB of FLASH program memory and 8KB of RAM. Connectivity options include I2C, IrDA, SPI, and UART/USART interfaces. The device integrates an 8-channel, 10-bit Analog-to-Digital converter (ADC). Peripherals include Brown-out Detect/Reset, Direct Memory Access (DMA), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The ATSAM3N0AA-AU is supplied in a 48-LQFP (7x7) surface-mount package and operates from a voltage supply range of 1.62V to 3.6V. Typical applications include industrial automation, consumer electronics, and IoT devices.
Additional Information
Series: SAM3NRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 34 |
| Programmable | Not Verified |
