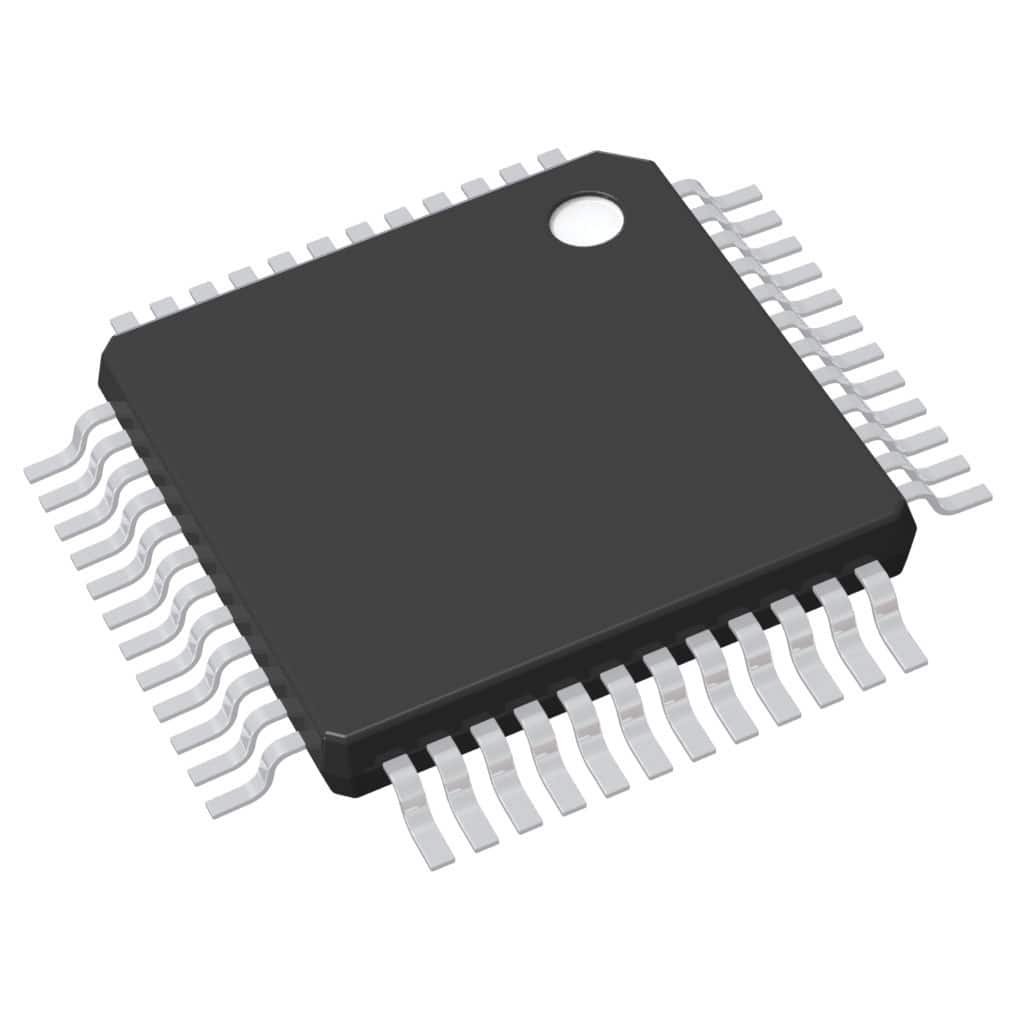

ATSAM3N00AA-AUR
IC MCU 32BIT 16KB FLASH 48LQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology ATSAM3N00AA-AUR is a 32-bit ARM Cortex-M3 microcontroller featuring a 48MHz single-core processor. This SAM3N series device offers 16KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C, IrDA, SPI, and UART/USART. It is equipped with an 8x10-bit Analog-to-Digital converter and peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT. The ATSAM3N00AA-AUR operates within a voltage range of 1.62V to 3.6V and has an operating temperature range of -40°C to 85°C. This component is supplied in a 48-LQFP (7x7) surface-mount package and is delivered on tape and reel. It finds application in various industrial automation, consumer electronics, and medical equipment sectors.
Additional Information
Series: SAM3NRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 34 |
| Programmable | Not Verified |
