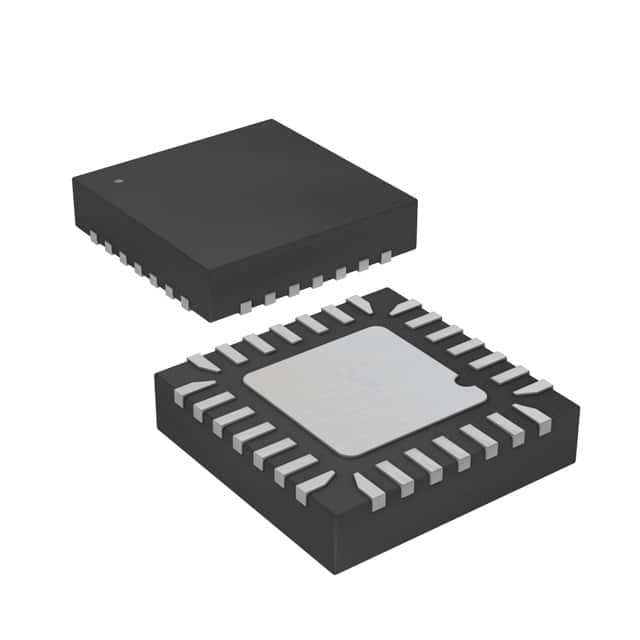

ATMEGA88PA-MMNR
IC MCU 8BIT 8KB FLASH 28VQFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATmega microcontroller, part number ATMEGA88PA-MMNR, features an 8-bit AVR core operating at 20MHz. This device offers 8KB of FLASH program memory (4K x 16) and 1KB of SRAM, alongside 512 bytes of EEPROM. Peripheral capabilities include I2C, SPI, and UART/USART interfaces, 8x10-bit Analog-to-Digital converters, and integrated features such as Brown-out Detect/Reset, POR, PWM, and WDT. With 23 I/O lines, it supports a wide supply voltage range of 1.8V to 5.5V and operates within an ambient temperature range of -40°C to 105°C. The component is housed in a 28-VQFN (4x4) exposed pad package and is supplied on tape and reel. This device is commonly employed in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 8KB (4K x 16) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 28-VQFN (4x4) |
| Number of I/O | 23 |
| Programmable | Not Verified |
