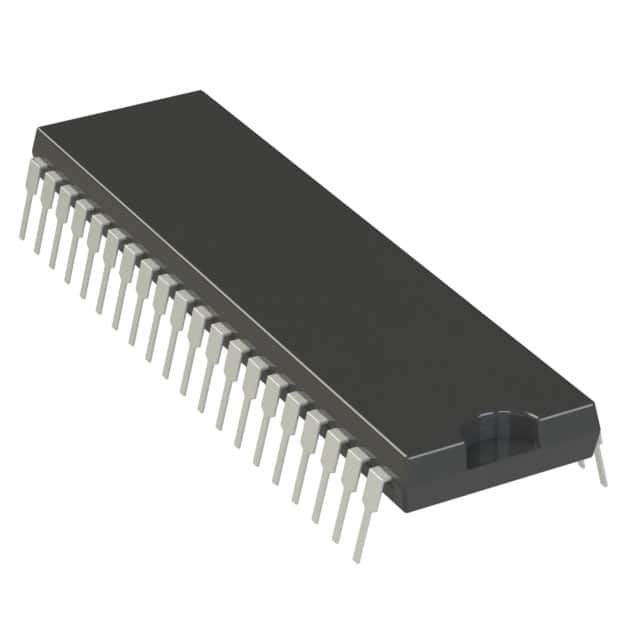

ATMEGA8535L-8PU
IC MCU 8BIT 8KB FLASH 40DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology presents the ATMEGA8535L-8PU, an 8-bit AVR microcontroller from the AVR® ATmega series. This device features an 8MHz clock speed and 8KB of FLASH program memory, organized as 4K x 16. It includes 512 x 8 bytes of EEPROM and 512 x 8 bytes of SRAM. The ATMEGA8535L-8PU offers 32 general-purpose I/O pins and supports I2C, SPI, and UART/USART communication interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Analog capabilities are provided by an 8-channel, 10-bit Analog-to-Digital converter. Designed for through-hole mounting in a 40-PDIP (0.600", 15.24mm) package, it operates across a voltage range of 2.7V to 5.5V within an ambient temperature range of -40°C to 85°C. This component finds application in various industrial automation, consumer electronics, and data acquisition systems.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 8KB (4K x 16) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 40-PDIP |
| Number of I/O | 32 |
| Programmable | Not Verified |
