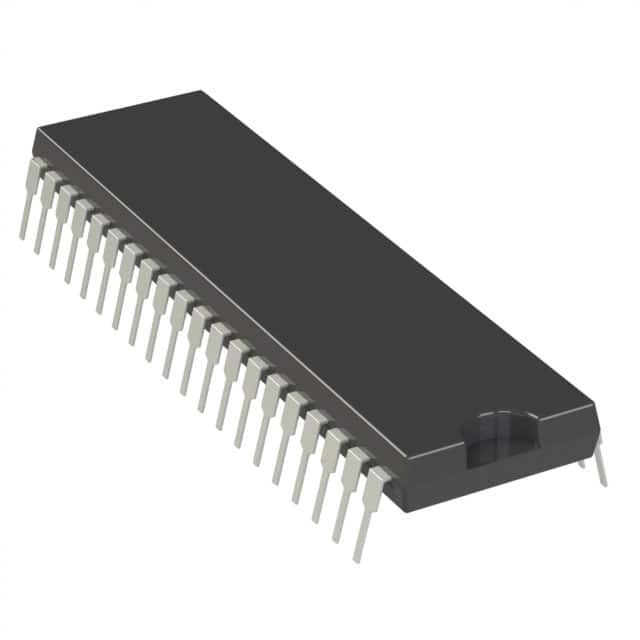

ATMEGA8515L-8PU
IC MCU 8BIT 8KB FLASH 40DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's ATMEGA8515L-8PU is an 8-bit AVR microcontroller featuring an 8MHz core speed. This device offers 8KB of FLASH program memory, organized as 4K x 16, and 512 bytes of RAM, alongside 512 bytes of EEPROM. Connectivity options include EBI/EMI, SPI, and UART/USART. The ATMEGA8515L-8PU is housed in a 40-PDIP package suitable for through-hole mounting and operates within an ambient temperature range of -40°C to 85°C. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Its 35 general-purpose I/O pins and a supply voltage range of 2.7V to 5.5V make it suitable for various industrial and consumer electronics applications. The AVR® ATmega series microcontroller is supplied in a tube.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 8KB (4K x 16) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | EBI/EMI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 40-PDIP |
| Number of I/O | 35 |
| Programmable | Not Verified |
