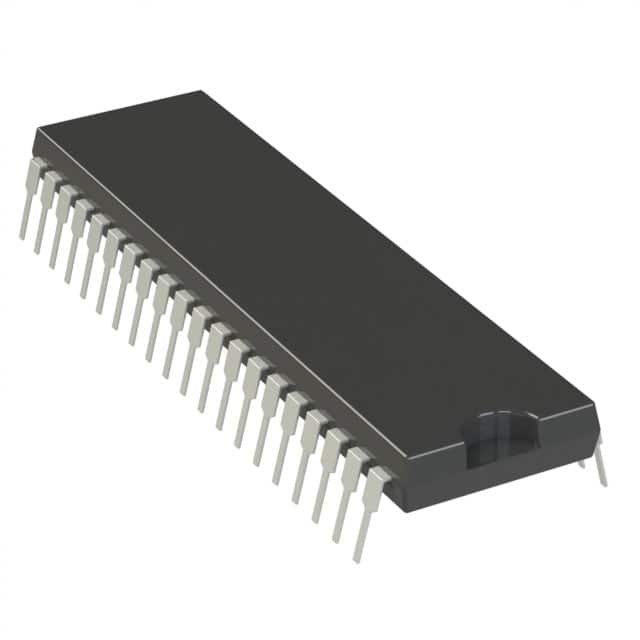

ATMEGA644PV-10PQ
IC MCU 8BIT 64KB FLASH 40DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's AVR® ATmega ATMEGA644PV-10PQ is an 8-bit AVR microcontroller featuring a 64KB FLASH program memory and 4KB RAM. This device operates at a 10MHz clock speed and includes an internal oscillator. Connectivity options comprise I2C, SPI, and UART/USART interfaces. The ATMEGA644PV-10PQ offers 32 general-purpose I/O pins and an 8-channel 10-bit Analog-to-Digital converter. Peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The 40-PDIP package facilitates through-hole mounting. This microcontroller is suitable for applications requiring robust control and data acquisition across various industrial sectors, including industrial automation and consumer electronics. It operates within an ambient temperature range of -40°C to 105°C and supports supply voltages from 1.8V to 5.5V.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 64KB (32K x 16) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | AVR |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 40-PDIP |
| Number of I/O | 32 |
| Programmable | Not Verified |
