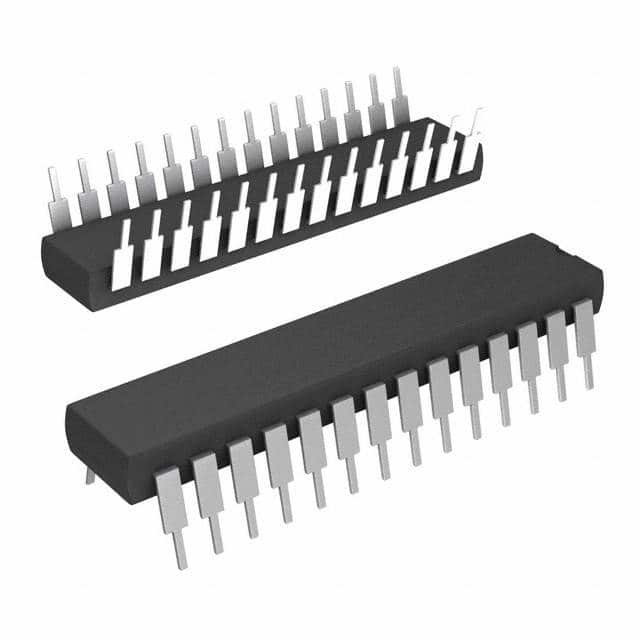

ATMEGA48PV-10PU
IC MCU 8BIT 4KB FLASH 28DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's AVR® ATmega microcontroller, part number ATMEGA48PV-10PU, features an 8-bit AVR core operating at 10MHz. This device offers 4KB of FLASH program memory (2K x 16) and 256 bytes of EEPROM. It includes 512 bytes of SRAM and supports multiple communication interfaces such as I2C, SPI, and UART/USART. The microcontroller is equipped with an A/D converter featuring 6 channels, each with a 10-bit resolution. On-chip peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The ATMEGA48PV-10PU is housed in a 28-PDIP package suitable for through-hole mounting and operates within a voltage range of 1.8V to 5.5V, with an operating temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation, consumer electronics, and IoT applications.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 10MHz |
| Program Memory Size | 4KB (2K x 16) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 6x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 28-PDIP |
| Number of I/O | 23 |
| Programmable | Not Verified |
