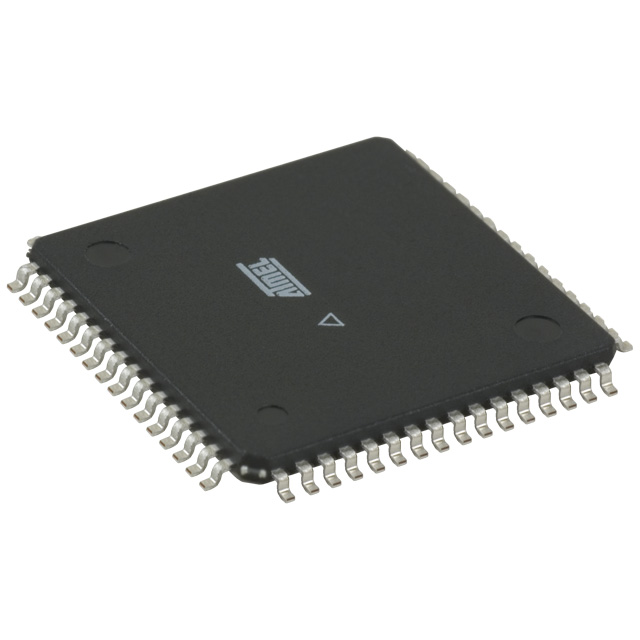

ATMEGA2561-16AI
IC MCU 8BIT 256KB FLASH 64TQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 256KB (128K x 16) FLASH 64-TQFP (14x14)
Additional Information
Series: AVR® ATmegaRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TQFP |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 256KB (128K x 16) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | AVR |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 64-TQFP (14x14) |
| Number of I/O | 54 |
| Programmable | Not Verified |
