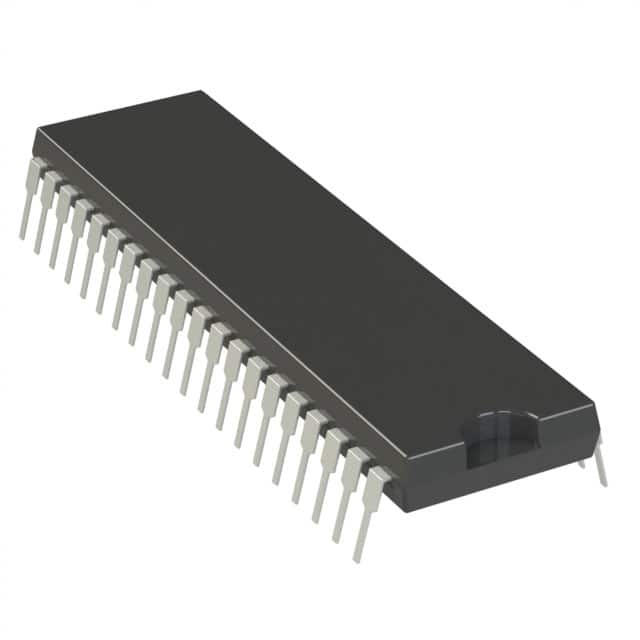

ATMEGA16L-8PU
IC MCU 8BIT 16KB FLASH 40DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATmega ATMEGA16L-8PU microcontroller featuring an 8-bit AVR core operating at 8MHz. This device offers 16KB of FLASH program memory (8K x 16) and 1KB of SRAM. Connectivity options include I2C, SPI, and UART/USART interfaces. Integrated peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The ATMEGA16L-8PU includes an 8-channel, 10-bit Analog-to-Digital converter (A/D). With 32 general-purpose I/O pins and 512 x 8 bytes of EEPROM, it supports a wide voltage range of 2.7V to 5.5V and operates within an ambient temperature range of -40°C to 85°C. The component is housed in a 40-pin Dual In-line Package (DIP) with a 0.600" pitch, suitable for through-hole mounting. This microcontroller is commonly utilized in industrial automation, automotive systems, and consumer electronics applications.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 16KB (8K x 16) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 40-PDIP |
| Number of I/O | 32 |
| Programmable | Not Verified |
