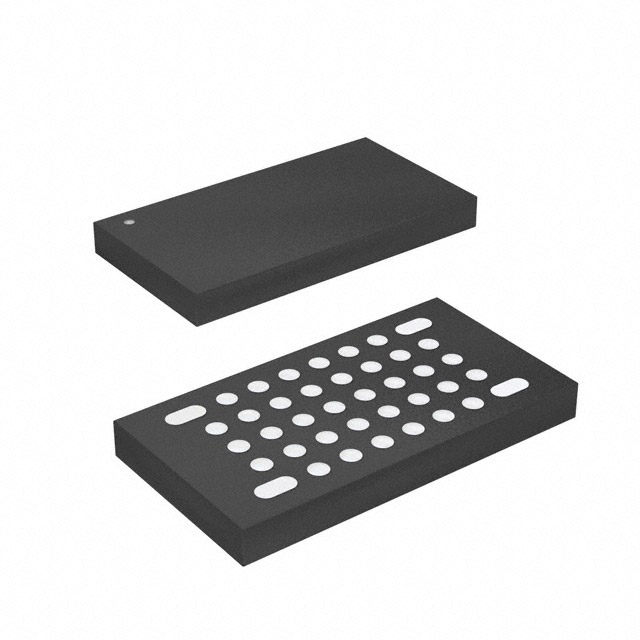

ATMEGA16HVA-4CKUR
IC MCU 8BIT 16KB FLASH 36LGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATmega microcontroller, part number ATMEGA16HVA-4CKUR, offers an 8-bit AVR core operating at 4MHz. This device features 16KB of FLASH program memory with an 8K x 16 organization, alongside 512 bytes of RAM and 256 bytes of EEPROM. Connectivity is provided via SPI. The microcontroller includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. It also integrates A/D converters with a 5x12-bit capability. The ATMEGA16HVA-4CKUR is housed in a 36-LGA (6.5x3.5) surface mount package, requiring a supply voltage ranging from 1.8V to 9V. It is designed for operation within an ambient temperature range of -20°C to 85°C. This component is commonly utilized in industrial automation and consumer electronics applications.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFLGA |
| Mounting Type | Surface Mount |
| Speed | 4MHz |
| Program Memory Size | 16KB (8K x 16) |
| RAM Size | 512 x 8 |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 5x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 9V |
| Connectivity | SPI |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 36-LGA (6.5x3.5) |
| Number of I/O | 7 |
| Programmable | Not Verified |
