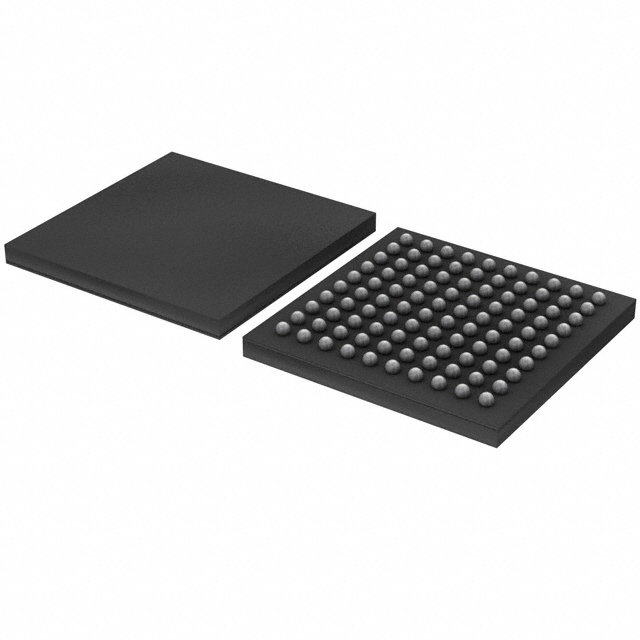

ATMEGA1280V-8CUR
IC MCU 8BIT 128KB FLASH 100CBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATmega microcontroller, part number ATMEGA1280V-8CUR. This 8-bit AVR core microcontroller features 128KB of FLASH program memory and 8KB of SRAM. Connectivity options include EBI/EMI, I2C, SPI, and UART/USART. The device offers 16 channels of 10-bit Analog-to-Digital conversion and 4KB of EEPROM. Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Operating at 8MHz, it supports a voltage range of 1.8V to 5.5V. The ATMEGA1280V-8CUR is housed in a 100-CBGA (9x9) package and is supplied on tape and reel. This component is utilized in automotive, industrial, and consumer electronics applications.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 128KB (64K x 16) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | AVR |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 100-CBGA (9x9) |
| Number of I/O | 86 |
| Programmable | Not Verified |
