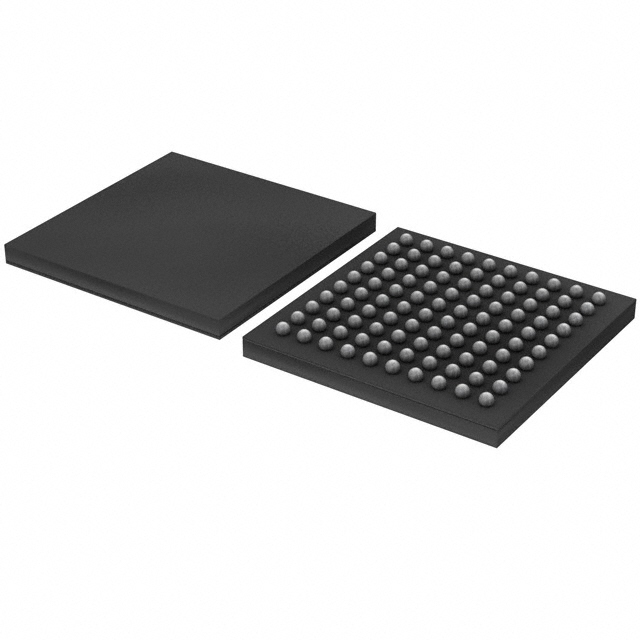

ATMEGA1280-16CUR
IC MCU 8BIT 128KB FLASH 100CBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® ATmega microcontroller, part ATMEGA1280-16CUR, features an 8-bit AVR core operating at 16MHz. This device offers 128KB of FLASH program memory with an additional 4KB of EEPROM and 8KB of SRAM. Connectivity options include EBI/EMI, I2C, SPI, and UART/USART. The ATMEGA1280-16CUR is equipped with a 16x10-bit Analog-to-Digital converter and includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. It supports 86 I/O lines and operates within a voltage range of 2.7V to 5.5V. The internal oscillator simplifies design. This surface mount component is supplied in a 100-CBGA (9x9) package and is available on tape and reel. Applications span industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: AVR® ATmegaRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 128KB (64K x 16) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | AVR |
| Data Converters | A/D 16x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 100-CBGA (9x9) |
| Number of I/O | 86 |
| Programmable | Not Verified |
