ATA6613P-PLPW
IC MCU 8BIT 16KB FLASH 48QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology ATA6613P-PLPW is an 8-bit AVR® ATA66 LIN-SBC microcontroller featuring a 16MHz AVR core. This device offers 16KB of FLASH program memory and 1KB of SRAM, complemented by 512 bytes of EEPROM. Integrated peripherals include an 8-channel 10-bit Analog-to-Digital converter, I2C, LINbus, SPI, and UART/USART communication interfaces. Additional features include Brown-out Detect/Reset, POR, PWM, and WDT. Qualified to AEC-Q100 and rated for automotive applications, this surface-mount component operates within an extended temperature range of -40°C to 125°C. The ATA6613P-PLPW is supplied in a 48-QFN (7x7) package, delivered on tape and reel. Its robust feature set makes it suitable for automotive body control and comfort applications.
Additional Information
Series: AVR® ATA66 LIN-SBCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 125°C (TC) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| Core Processor | AVR |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 48-QFN (7x7) |
| Grade | Automotive |
| Number of I/O | 23 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy
ATA664251-WGQW
IC MCU 8BIT 16KB FLASH 48QFN
ATA6616-P3PW
IC MCU 8BIT 8KB FLASH 38VQFN

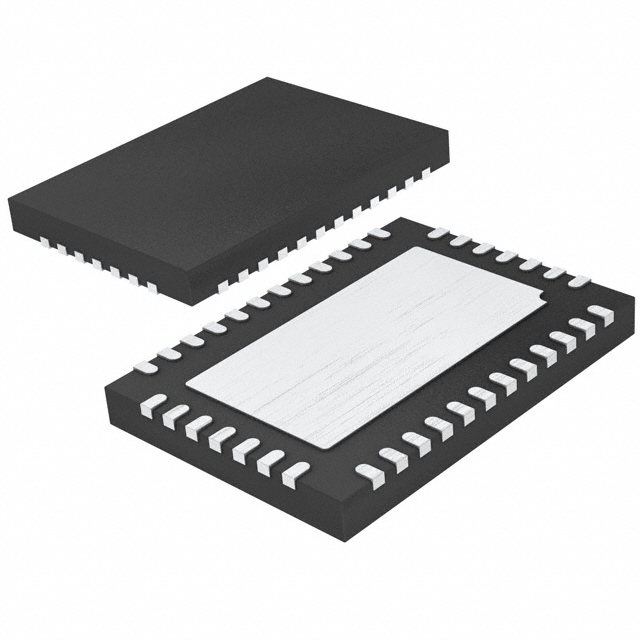

ATA6617-P3PW
