AT91SAM7SE512-AU
IC MCU 16/32B 512KB FLSH 128LQFPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's AT91SAM7SE512-AU is a high-performance ARM7®-based microcontroller featuring a 16/32-bit core operating at 55MHz. This device offers 512KB of FLASH program memory and 32KB of SRAM, along with an 8x10-bit Analog-to-Digital converter. Connectivity options include EBI/EMI, I2C, SPI, SSC, UART/USART, and USB, supporting versatile system integration. The AT91SAM7SE512-AU is equipped with peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Designed for surface mount applications, it comes in a 128-LQFP (20x14) package. This component is suitable for industrial automation, medical devices, and consumer electronics. It operates within a voltage range of 1.65V to 1.95V and an ambient temperature range of -40°C to 85°C.
Additional Information
Series: SAM7SERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Speed | 55MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 8x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V |
| Connectivity | EBI/EMI, I2C, SPI, SSC, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 128-LQFP (20x14) |
| Number of I/O | 88 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

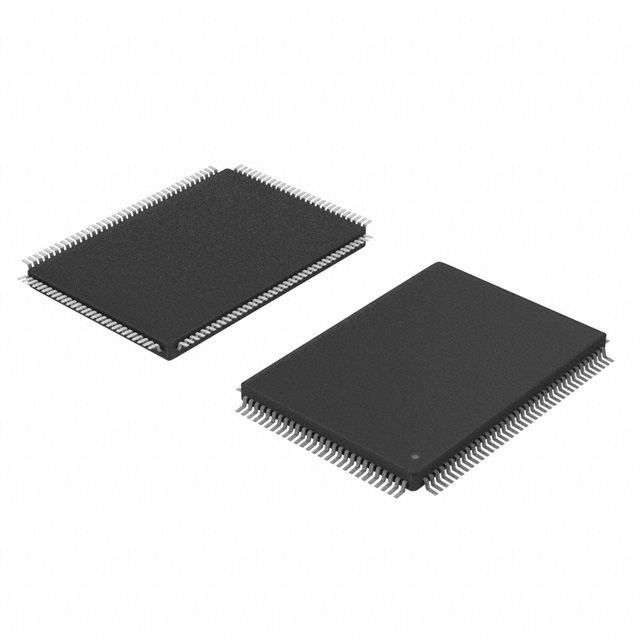

AT91SAM7SE512B-AU
