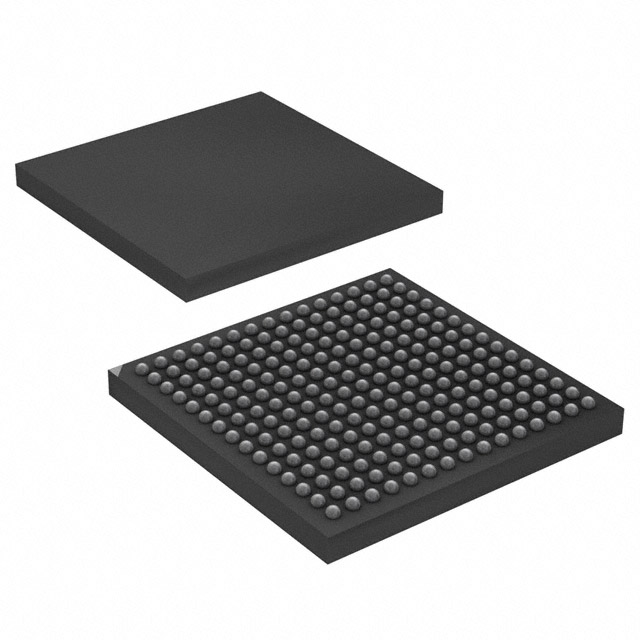

AT91CAP7E-NA-ZJ
IC MCU 16/32B 256KB ROM 225LFBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AT91CAP7E-NA-ZJ is an ARM7® CAP™ microcontroller featuring a 16/32-bit core operating at 80MHz. This device offers 256KB of ROM for program memory and 160K x 8 of RAM. Connectivity options include EBI/EMI, FPGA interface, IrDA, SPI, UART/USART, and USB. Integrated peripherals include DMA, POR, PWM, and WDT. The AT91CAP7E-NA-ZJ also incorporates 8x10-bit Analog-to-Digital converters. It is supplied in a 225-LFBGA (13x13) surface mount package and operates within a temperature range of -40°C to 85°C. The supply voltage range is 1.08V to 3.6V. This component is utilized in industrial automation, consumer electronics, and telecommunications applications.
Additional Information
Series: CAP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 225-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 160K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROM |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 8x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.6V |
| Connectivity | EBI/EMI, FPGA, IrDA, SPI, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Supplier Device Package | 225-LFBGA (13x13) |
| Number of I/O | 32 |
| Programmable | Not Verified |
