AT90SCR100H-Z1T
IC MCU 8BIT 64KB FLASH 64QFNManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AVR® 90SCR microcontroller, part number AT90SCR100H-Z1T. This 8-bit AVR microcontroller features a 48MHz core processor with 64KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C, SmartCard, SPI, UART/USART, and USB. The AT90SCR100H-Z1T is housed in a 64-QFN (9x9) package suitable for surface mounting and operates within a temperature range of -40°C to 85°C. Peripherals include Brown-out Detect/Reset, DMA, LED, POR, PWM, and WDT. This component is commonly found in secure access and smart card applications.
Additional Information
Series: AVR® 90SCRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | AVR |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Connectivity | I2C, SmartCard, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, LED, POR, PWM, WDT |
| Supplier Device Package | 64-QFN (9x9) |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

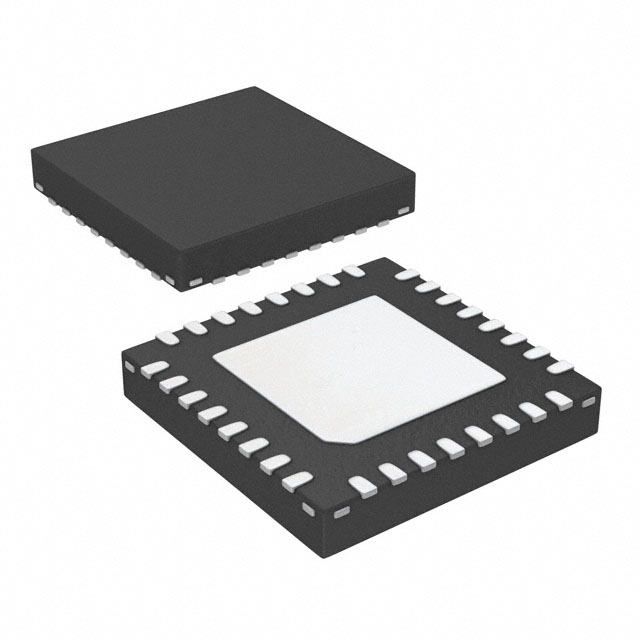

AT90SCR100LHS-Z1T
