AT89LP828-20PU
IC MCU 8BIT 8KB FLASH 28DIPManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology AT89LP828-20PU is an 8-bit microcontroller featuring an 8051 core operating at up to 20MHz. This device offers 8KB of FLASH program memory and 1KB of EEPROM, alongside 768 bytes of RAM. It supports SPI and UART/USART communication interfaces. Peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The AT89LP828-20PU is housed in a 28-DIP (0.300", 7.62mm) package designed for through-hole mounting. It operates over a temperature range of -40°C to 85°C and is compatible with supply voltages from 2.4V to 5.5V. This component is commonly found in industrial automation and consumer electronics applications.
Additional Information
Series: 89LPRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 20MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 28-PDIP |
| Number of I/O | 30 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

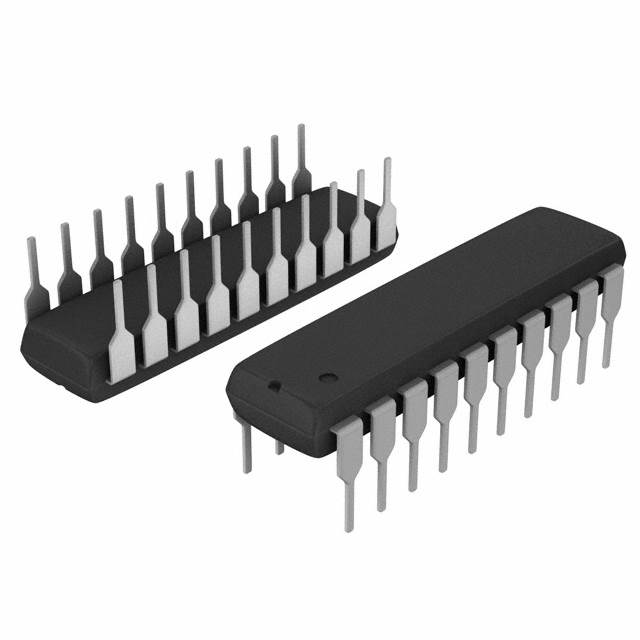

AT89LP4052-20PU
