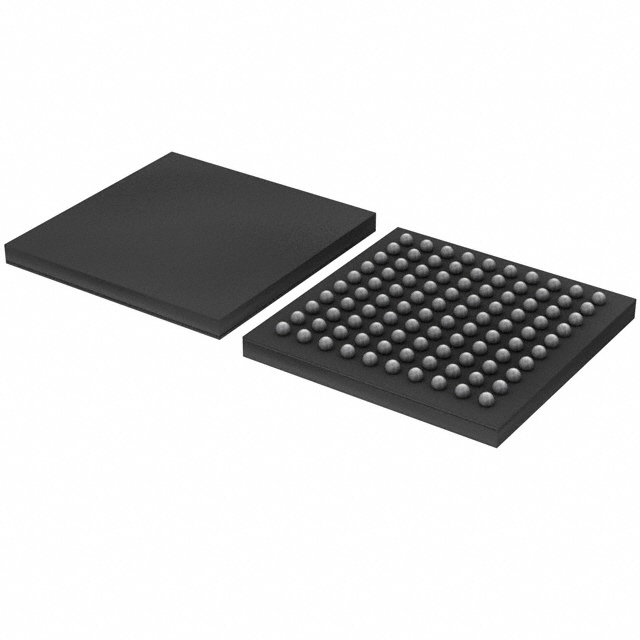

AT89C51SND2C-7FTUL
IC MCU 8BIT 64KB FLASH 100CTBGAManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
Microchip Technology's AT89C51SND2C-7FTUL is an 8-bit microcontroller based on the 80C51 core. This FLASH memory device offers 64KB of program memory and 2.25KB of RAM, operating at a maximum frequency of 40MHz. The AT89C51SND2C-7FTUL features a 100-CTBGA (9x9) package for surface mounting. Connectivity options include I2C, IDE/ATAPI, Memory Card, SPI, UART/USART, and USB. Integrated peripherals include audio, I2S, MP3, PCM, POR, and WDT. This component is suitable for applications in consumer electronics and embedded systems. It operates within a temperature range of -40°C to 85°C and requires a supply voltage between 2.7V and 3.3V.
Additional Information
Series: 89CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 2.25K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 80C51 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.3V |
| Connectivity | I2C, IDE/ATAPI, Memory Card, SPI, UART/USART, USB |
| Peripherals | Audio, I2S, MP3, PCM, POR, WDT |
| Supplier Device Package | 100-CTBGA (9x9) |
| Number of I/O | 32 |
| Programmable | Not Verified |
