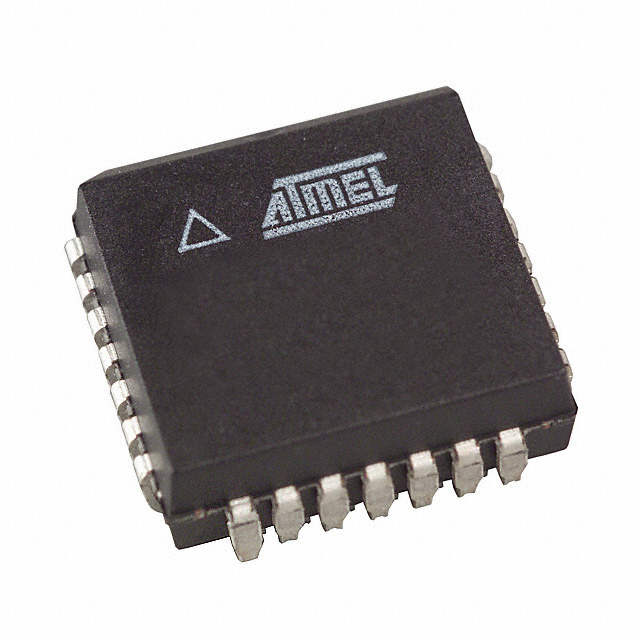

AT89C5115-SISUM
IC MCU 8BIT 16KB FLASH 28PLCCManufacturer: Microchip Technology
Categories: Microcontrollers
Quality Control: Learn More
The Microchip Technology AT89C5115-SISUM is an 8-bit microcontroller based on the 80C51 core architecture. This 89C series device features 16KB of FLASH program memory and 512 bytes of RAM, suitable for applications requiring robust control and data handling. It operates at speeds up to 40MHz and includes 20 general-purpose I/O pins. Peripherals include UART/USART, POR, PWM, and WDT for enhanced functionality. The integrated 8x10-bit Analog-to-Digital converter provides analog input capabilities. This component is available in a 28-PLCC surface mount package, designed for operation within a temperature range of -40°C to 85°C. Its versatility makes it a choice for industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: 89CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | 80C51 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Number of I/O | 20 |
| Programmable | Verified |
