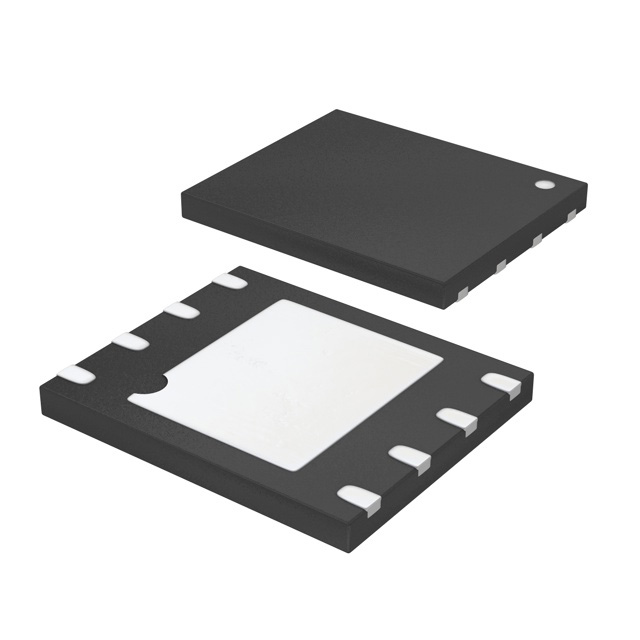

AT45DB161E-MHD2B-T
IC FLASH 16MBIT SPI 85MHZ 8UDFNManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology AT45DB161E-MHD2B-T is a 16Mbit Non-Volatile FLASH memory device featuring an SPI interface. Operating at a maximum clock frequency of 85 MHz, this component is organized into 512 Bytes x 4096 pages. The device supports a voltage supply range of 2.5V to 3.6V. Available in a compact 8-UDFN (5x6) surface mount package, it is supplied on tape and reel. Typical applications include industrial control systems, consumer electronics, and automotive systems requiring reliable data storage. Write cycle times for word and page operations are 8µs and 6ms, respectively. The operating temperature range is specified as -40°C to 85°C (TC).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 2.5V ~ 3.6V |
| Technology | FLASH |
| Clock Frequency | 85 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-UDFN (5x6) |
| Write Cycle Time - Word, Page | 8µs, 6ms |
| Memory Interface | SPI |
| Memory Organization | 512 Bytes x 4096 pages |
| Programmable | Not Verified |
