AT45DB041B-TI
IC FLASH 4MBIT SPI 20MHZ 28TSOPManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More

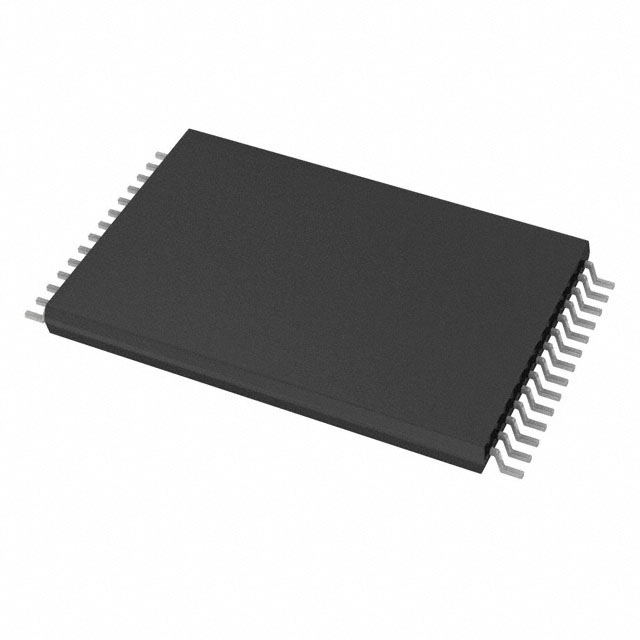

Microchip Technology AT45DB041B-TI is a 4Mbit serial peripheral interface (SPI) Flash memory integrated circuit. Operating at a maximum clock frequency of 20 MHz, this non-volatile memory utilizes a page-based architecture with 264 bytes per page, organized into 2048 pages. The device supports a supply voltage range of 2.7V to 3.6V. It is packaged in a 28-TSOP configuration suitable for surface mounting and operates within an industrial temperature range of -40°C to 85°C. The write cycle time for a page is 14ms. This component is commonly employed in industrial automation, consumer electronics, and automotive applications requiring reliable data storage.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-TSSOP (0.465"", 11.80mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 4Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH |
| Clock Frequency | 20 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 28-TSOP |
| Write Cycle Time - Word, Page | 14ms |
| Memory Interface | SPI |
| Memory Organization | 264 Bytes x 2048 pages |
| Programmable | Not Verified |
