AT45DB011-XC

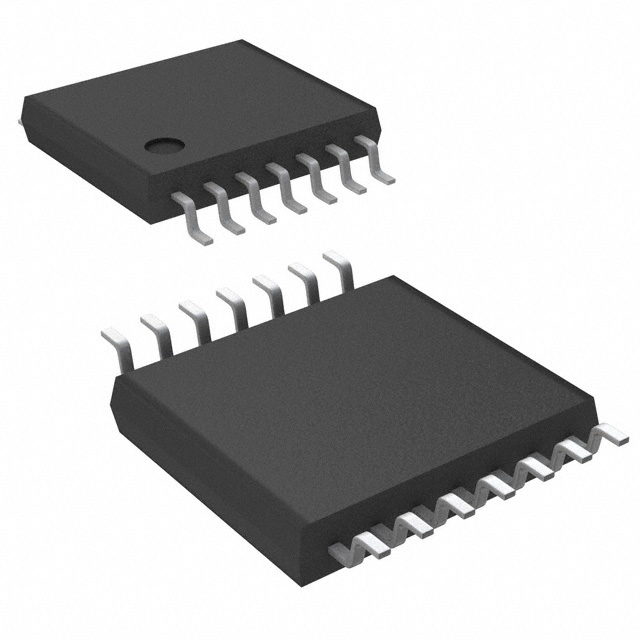

IC FLASH 1MBIT SPI 15MHZ 14TSSOPManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology's AT45DB011-XC is a 1Mbit serial interface flash memory device. This non-volatile memory utilizes an SPI interface operating at a maximum clock frequency of 15 MHz. The memory is organized into 512 pages, with each page containing 264 bytes. Designed for surface mount applications, it is supplied in a 14-TSSOP package, measuring 4.40mm in width. The AT45DB011-XC operates from a supply voltage range of 2.7V to 3.6V. Typical write cycle time for a page is 15ms. This component is suitable for use in industrial, consumer, and communications systems requiring reliable data storage.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | 0°C ~ 70°C (TC) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH |
| Clock Frequency | 15 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 14-TSSOP |
| Write Cycle Time - Word, Page | 15ms |
| Memory Interface | SPI |
| Memory Organization | 264 Bytes x 512 pages |
| Programmable | Not Verified |
