AT28C256-15LM/883
IC EEPROM 256KBIT PARALLEL 32LCCManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More

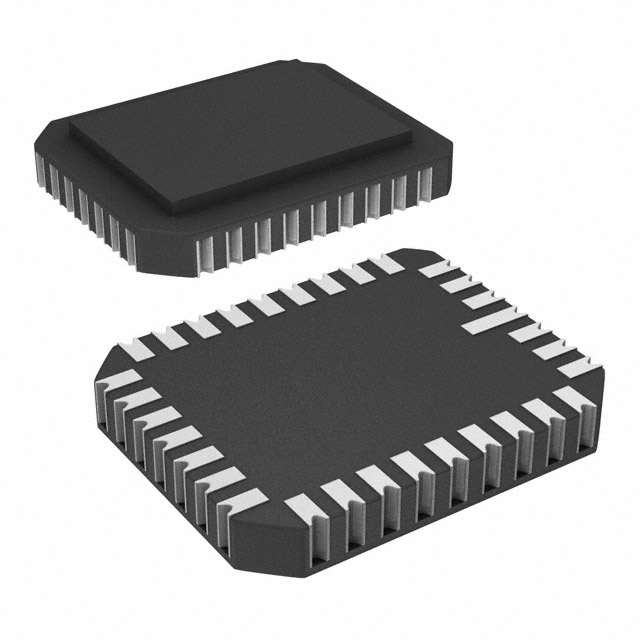

Microchip Technology's AT28C256-15LM-883 is a 256Kbit Electrically Erasable Programmable Read-Only Memory (EEPROM) device. Featuring a parallel memory interface, this component offers a 32K x 8 memory organization with an access time of 150 ns. Designed for robust operation, it supports a supply voltage range of 4.5V to 5.5V and operates across an extended temperature range of -55°C to 125°C. The non-volatile memory type ensures data retention. This device is housed in a 32-lead Ceramic Leadless Chip Carrier (CLCC) package, suitable for surface mounting. Applications for this component are found in aerospace, defense, and industrial automation systems requiring high reliability and endurance. The write cycle time for a word or page is 10ms.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-CLCC |
| Mounting Type | Surface Mount |
| Memory Size | 256Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -55°C ~ 125°C (TC) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | EEPROM |
| Memory Format | EEPROM |
| Supplier Device Package | 32-LCC (11.43x13.97) |
| Write Cycle Time - Word, Page | 10ms |
| Memory Interface | Parallel |
| Access Time | 150 ns |
| Memory Organization | 32K x 8 |
| Programmable | Not Verified |
