AT28C010-15JU
IC EEPROM 1MBIT PARALLEL 32PLCCManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology AT28C010-15JU is a 1Mbit Parallel EEPROM memory device. This non-volatile memory features a 128K x 8 organization and offers a 150 ns access time. Designed for parallel interfacing, this component operates with a supply voltage range of 4.5V to 5.5V. The write cycle time for a word or page is 10ms. Packaged in a 32-PLCC (J-Lead) surface mount configuration, the AT28C010-15JU is suitable for applications operating within an extended temperature range of -40°C to 85°C (TC). This component finds application in various industrial and commercial sectors requiring reliable data storage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | EEPROM |
| Memory Format | EEPROM |
| Supplier Device Package | 32-PLCC (13.97x11.43) |
| Write Cycle Time - Word, Page | 10ms |
| Memory Interface | Parallel |
| Access Time | 150 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

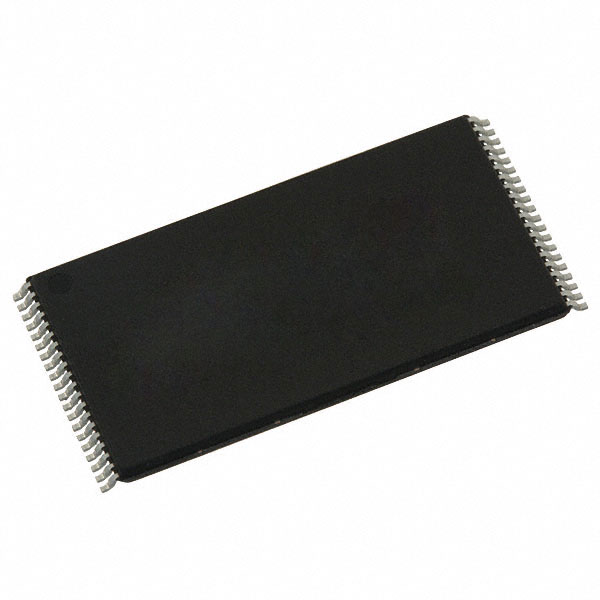

AT49BV322DT-70TU-T
