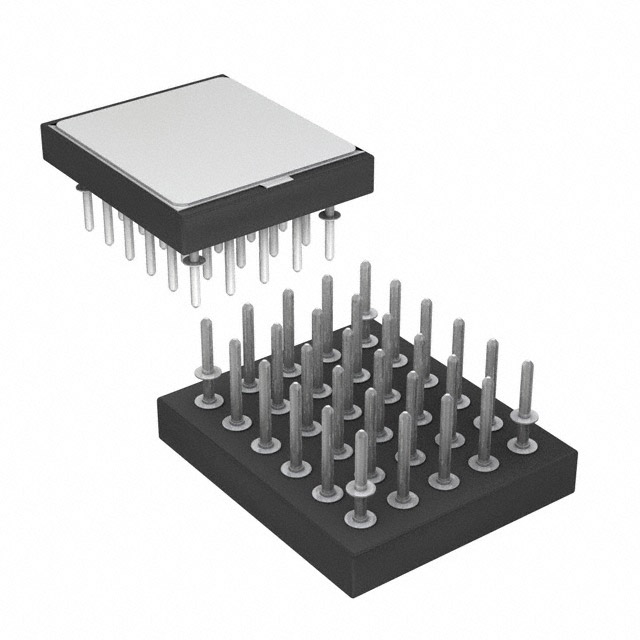

AT28C010-12UM/883
IC EEPROM 1MBIT PARALLEL 30CPGAManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology AT28C010-12UM-883 is a 1Mbit parallel EEPROM memory integrated circuit. This non-volatile memory features a 128K x 8 organization and offers an access time of 120 ns. Designed for robust operation, it supports a voltage supply range of 4.5V to 5.5V and operates within an extended temperature range of -55°C to 125°C. The write cycle time for a word or page is 10ms. The component is housed in a 30-CPGA package with dimensions of 16.51mm x 13.97mm. This device is suitable for applications in aerospace, defense, and high-reliability industrial systems requiring persistent data storage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 30-BCPGA |
| Mounting Type | Through Hole |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -55°C ~ 125°C (TC) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | EEPROM |
| Memory Format | EEPROM |
| Supplier Device Package | 30-CPGA (16.51x13.97) |
| Write Cycle Time - Word, Page | 10ms |
| Memory Interface | Parallel |
| Access Time | 120 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
