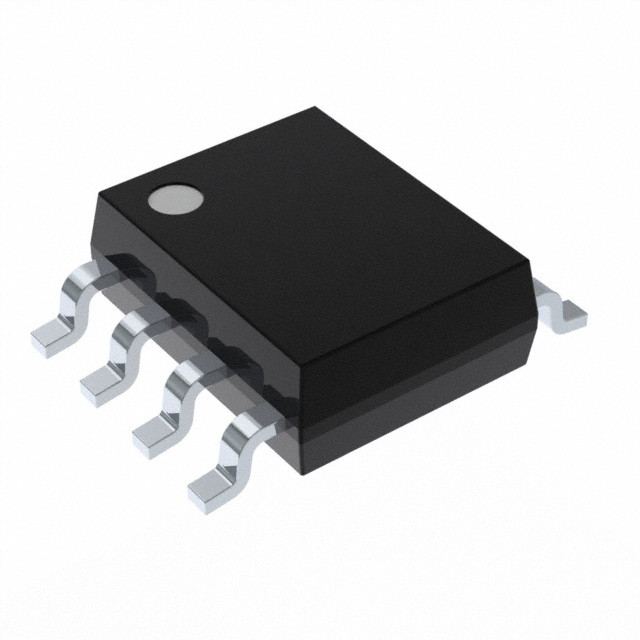

AT25M01-SHM-B
IC EEPROM 1MBIT SPI 20MHZ 8SOIJManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology's AT25M01-SHM-B is a 1Mbit Serial Peripheral Interface (SPI) EEPROM memory device. This non-volatile memory features a clock frequency of 20 MHz and a memory organization of 128K x 8. Designed for surface mount applications, it is housed in an 8-SOIJ package (8-SOIC, 0.209" width). The device operates across a wide voltage range of 1.7V to 5.5V and supports an industrial operating temperature range of -40°C to 85°C. Typical applications include industrial controls, automotive systems, and consumer electronics requiring reliable data storage. The write cycle time for a word or page is 5ms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 5.5V |
| Technology | EEPROM |
| Clock Frequency | 20 MHz |
| Memory Format | EEPROM |
| Supplier Device Package | 8-SOIJ |
| Write Cycle Time - Word, Page | 5ms |
| Memory Interface | SPI |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
