AT25F512B-MAH-T
IC FLASH 512KBIT SPI 70MHZ 8UDFNManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More

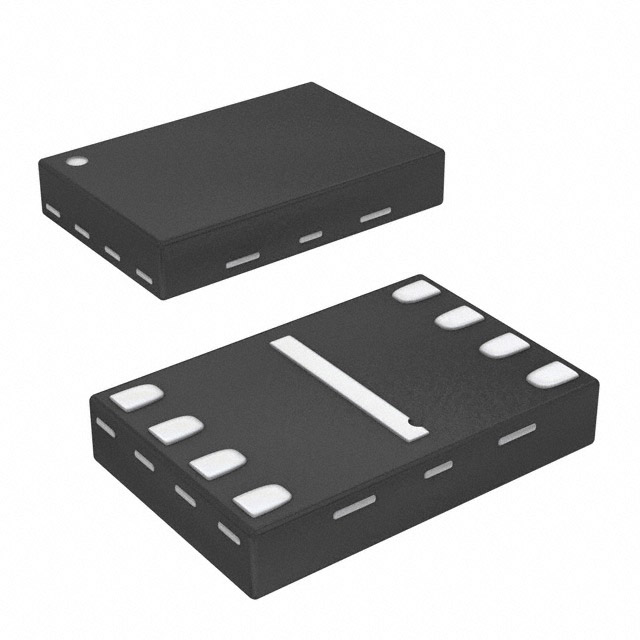

Microchip Technology's AT25F512B-MAH-T is a 512Kbit serial peripheral interface (SPI) Flash memory device. Operating at frequencies up to 70 MHz, this non-volatile memory features a 64K x 8 organization and is supplied in an 8-UDFN (2x3) surface-mount package. Designed for efficient data storage and retrieval, it supports a supply voltage range of 2.7V to 3.6V. Key specifications include a word write cycle time of 15µs and a page write cycle time of 5ms. This component is suitable for applications requiring compact, high-performance Flash memory, commonly found in industrial and consumer electronics. The device is provided in Tape & Reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 512Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH |
| Clock Frequency | 70 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-UDFN (2x3) |
| Write Cycle Time - Word, Page | 15µs, 5ms |
| Memory Interface | SPI |
| Memory Organization | 64K x 8 |
| Programmable | Not Verified |
