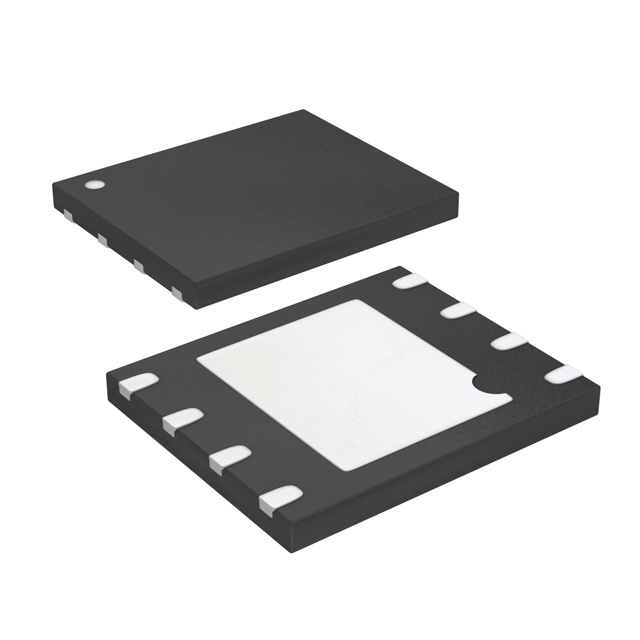

AT25020AY1-10YU-1.8
IC EEPROM 2KBIT SPI 20MHZ 8MAPManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology AT25020AY1-10YU-1-8 is a 2Kbit Serial Peripheral Interface (SPI) EEPROM memory device. Operating at a maximum clock frequency of 20 MHz, this non-volatile memory offers a memory organization of 256 x 8 bits. The device supports a wide supply voltage range from 1.8V to 5.5V and features a write cycle time of 5ms. It is housed in an 8-MAP (3x4.9) surface-mount package, specifically an 8-VDFN exposed pad. This component is suitable for applications requiring reliable data storage in industrial and automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 2Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.8V ~ 5.5V |
| Technology | EEPROM |
| Clock Frequency | 20 MHz |
| Memory Format | EEPROM |
| Supplier Device Package | 8-MAP (3x4.9) |
| Write Cycle Time - Word, Page | 5ms |
| Memory Interface | SPI |
| Memory Organization | 256 x 8 |
| Programmable | Not Verified |
