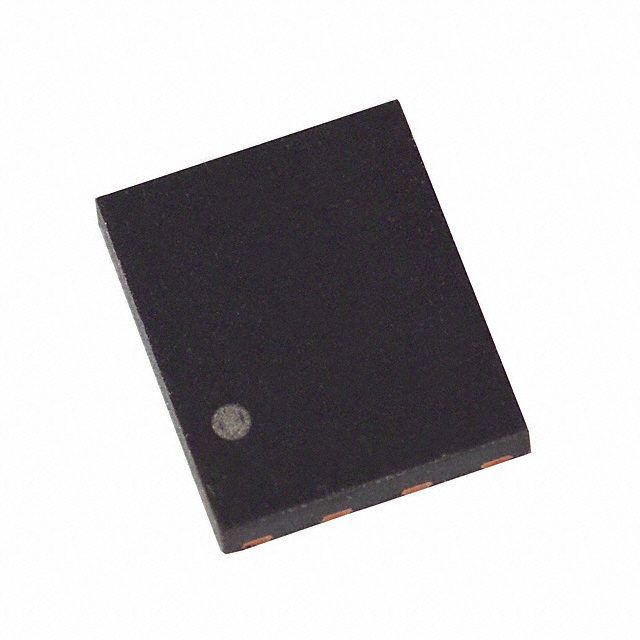

AT24C1024Y4-10YU-2.7
IC EEPROM 1MBIT I2C 1MHZ 8SAPManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology AT24C1024Y4-10YU-2-7 is a 1Mbit non-volatile EEPROM memory device. This component utilizes the I2C serial interface, supporting clock frequencies up to 1 MHz. With a guaranteed access time of 550 ns, it is organized as 128K x 8 bits. The AT24C1024Y4-10YU-2-7 operates across a supply voltage range of 2.7V to 5.5V and is specified for an operating temperature range of -40°C to 85°C. The device is supplied in an 8-SAP (4.9x6.0) surface-mount package, suitable for applications in industrial automation, consumer electronics, and automotive systems. A word/page write cycle time of 10ms is a key characteristic for data persistence.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 1Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Technology | EEPROM |
| Clock Frequency | 1 MHz |
| Memory Format | EEPROM |
| Supplier Device Package | 8-SAP (4.9x6.0) |
| Write Cycle Time - Word, Page | 10ms |
| Memory Interface | I2C |
| Access Time | 550 ns |
| Memory Organization | 128K x 8 |
| Programmable | Not Verified |
