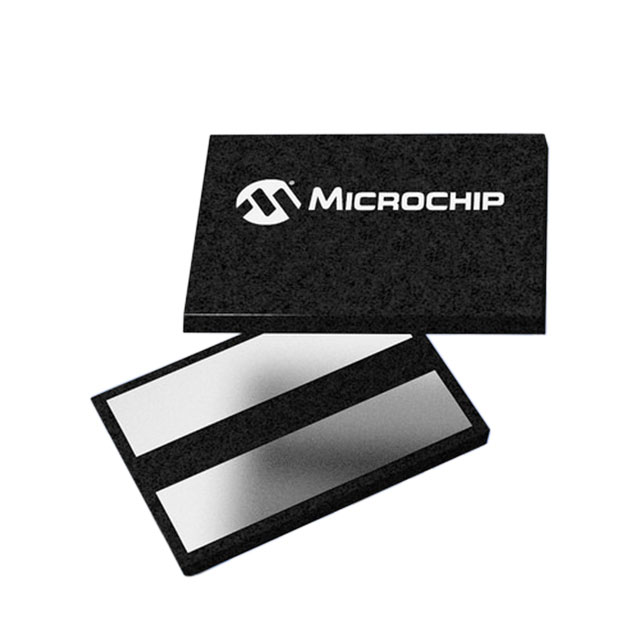

AT21CS01-MSHM10-T
IC EEPROM 1KBIT I2C 125KHZ 2XSFNManufacturer: Microchip Technology
Categories: Memory
Quality Control: Learn More
Microchip Technology's AT21CS01-MSHM10-T is a 1Kbit non-volatile EEPROM memory component utilizing the I2C and Single Wire interface protocols with a maximum clock frequency of 125 kbps. This device offers a memory organization of 128 x 8 bits and operates from a supply voltage of 1.7V to 3.6V. The AT21CS01-MSHM10-T is housed in a compact 2-XSFN (5x3.5) package suitable for surface mounting. Its operating temperature range is -40°C to 85°C (TC). This component finds application in various industrial sectors including automotive, industrial automation, and consumer electronics, where reliable and compact non-volatile storage is essential for configuration data or small datasets. The write cycle time for a word or page is specified as 5ms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount |
| Memory Size | 1Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Voltage - Supply | 1.7V ~ 3.6V |
| Technology | EEPROM |
| Clock Frequency | 125 kbps |
| Memory Format | EEPROM |
| Supplier Device Package | 2-XSFN (5x3.5) |
| Write Cycle Time - Word, Page | 5ms |
| Memory Interface | I2C, Single Wire |
| Memory Organization | 128 x 8 |
| Programmable | Not Verified |
